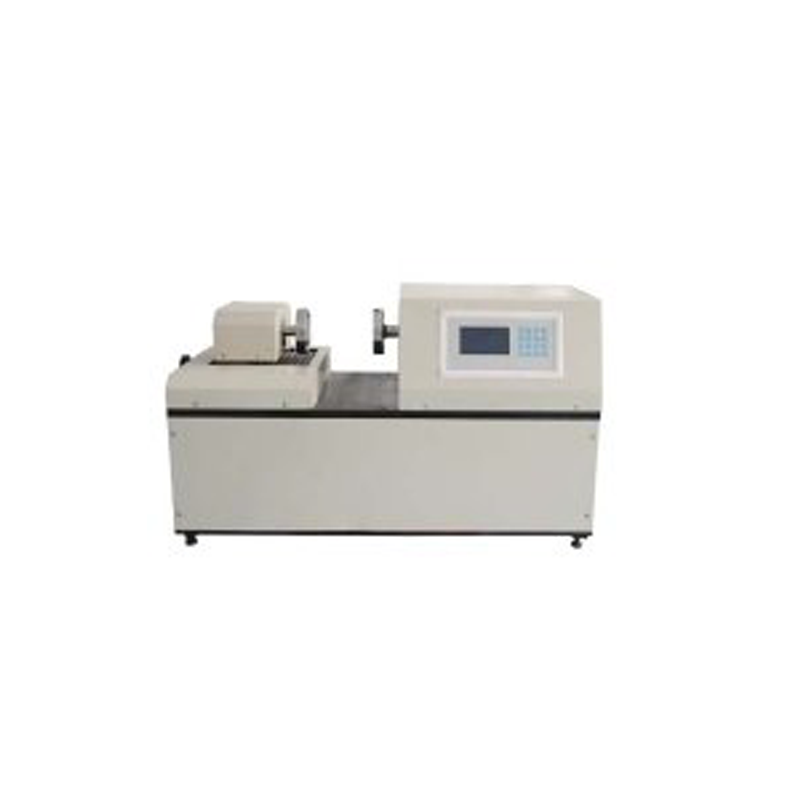

Digital Display Automatic Spring Torsion Testing Machine
Digital Display Automatic Spring Torsion Testing Machine
1.Categories:
The company production of microcomputer controlled torsion testing machine combined with advanced control
technology, exquisite appearance design abroad. Taiwan ABBA using high precision ultra wide linear guide and
ultra thick steel plate with high strength host host, application of Taiwan Dong Yuan AC servo motor as a power
source for high output passed to the cycloidal pin wheel reducer system can output and control of high
performance torque and torsionangle.
Analysis of the material testing machine is widely used in building materials,aerospace, machinery
manufacturing, wire and cable, rubber and plastics,automobile manufacturing, damping system and other
industries, is the ideal test equipment for scientific research institutions, universities, industrial and mining
enterprises, and technical supervision, arbitration and other departments of the.
2.The main technical indicators:
| Product Name | Digital Display Automatic Spring Torsion Testing Machine |
| Maximum torque of N/m | 200/500/1000/2000/3000/5000 N/m |
| Testing machine level | Level 1 |
| The relative error between the
indicated torque |
Than + 1% |
| Torque resolution | 0.02N/m |
| The range of torsion angle measurement | 0~10000 degree |
| Torsion angle measuring relative error | + 1% |
|
Reverse speed |
0.05 degrees /min-1000 degrees /min |
| The maximum distance between chucks | 450mm |
| Reverse speed relative error | Within the set value of plus or minus1% |
| The test process and measurement, display,
analysis, control |
Automatically display system |
| Protection | With a programmable and mechanical two level
limit protection |
| Power supply | 220V, 50Hz, 1KW |
| Net weight | 300Kg
3.Testing machine configuration: 3.1 High strength torsion testing machine mainframe (table structure, spray machine processing) 3.2 high precision angle encoder a 3.3 high precision AC servo control system and AC servo speed regulating motorof the set 3.4 Taiwan ABBA precision linear guide two sets 3.5 efficient sewing a balance wheel speed reducer 3.6 1000N/m high precision torque sensor a 3.7 test machine special twisting assistive technology a 3.8 HST-N600 reverse the special test and control test machine shows a system
4.The function introduction: 4.1 automatic shutdown: sample destruction, automatic stop moving moving beam 4.2 display mode: the test process is dynamic and real time display of torque,torsional angle and torsional velocity and peak volume, etc. in the same test condition in real time on the LCD screen display |
