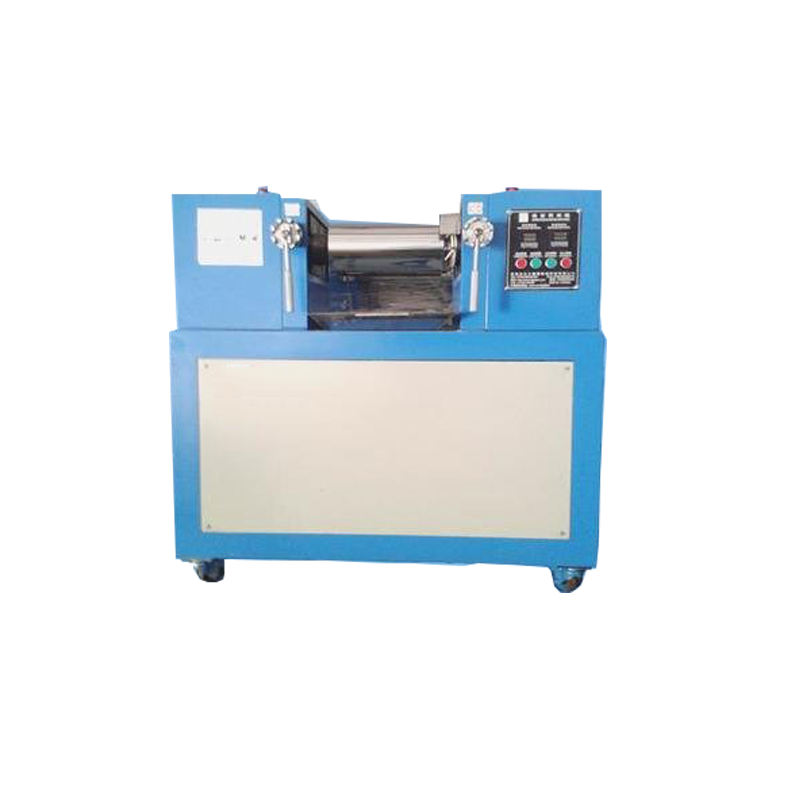

3 inch Lab Plastic Two Roll Open Mixing Equipment
3 inch Lab Plastic Two Roll Open Mixing Equipment
Introduction:
Laboratory PVC Silicone Plastic Rubber Open Mixing Two Roll Mill Machinery
is engineered to provide unmatched performance for masticating and kneading natural rubber,synthetic rubber , EVA or PVC pellets with various chemical materials,This machine is mainly used to plastic ,hot mill and mixing mill of natural and synthetic rubber for rubber product factory
|
Diameter of roll |
mm |
76 |
120 |
160 |
200 |
230 |
300 |
400 |
|
Length of roller face |
mm |
300 |
350 |
350 |
500 |
650 |
650 |
900 |
|
Mixing Capacity |
kg |
0.002-0.6 |
0.002-2 |
0.002-2.8 |
0.002-5 |
0.005-10 |
1-15 |
5-30 |
|
Front roll surface speed |
rpm |
19 |
19 |
19 |
19 |
19 |
19 |
19 |
|
Friction ratio |
|
1:1.30 |
1:1.35 |
1:1.35 |
1:1.35 |
1:1.27 |
1:1.27 |
1:1.27 |
|
Roll gap range |
mm |
0-3 |
0-6 |
0-6 |
0-8 |
0-12 |
0-12 |
0-15 |
|
Driving Power |
KW |
1 |
1.5 |
2.2 |
7.5 |
11 |
30 |
37 |
|
Heating Mode |
Electricity heating , Oil Heating ( option) |
|||||||
|
Cooling Mode |
Water Cooling ( option) |
|||||||
|
Roll Temperature |
Room temperature — 300℃ |
|||||||
| Roll Hardness |
HRC 50 ~ 60 |
|||||||
| Temperature Accuracy |
± 2 ℃ (we adopt the high accuracy PID micro computer controller) |
|||||||
| Safety device |
It have 6 safety buttons and safety guard is option |
|||||||
| Machine weight |
kg |
160 |
460 |
660 |
860 |
1960 |
2960 |
3800 |
| Overall dimension |
mm |
1100x400x1180 |
1100x550x1380 |
1200x650x1380 |
2200x750x1380 |
2200x950x1580 |
2600x950x1580 |
5295×1789 x170 |
| Power |
380V 3 phase 50-60hz |
|||||||
