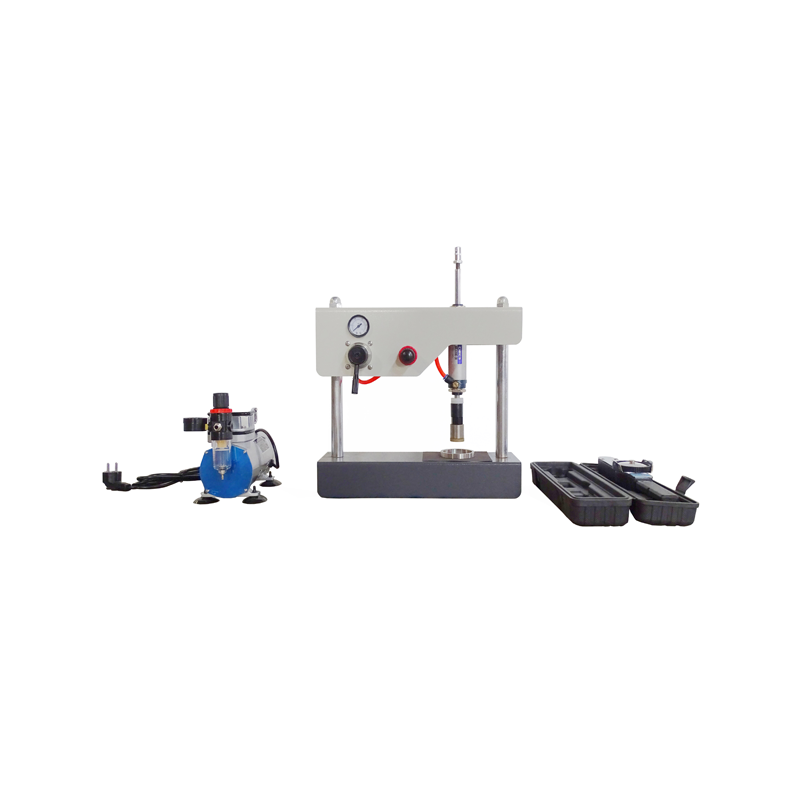

Adhesion Tester

This instrument is used to determine the emulsified asphalt thin slurry sealing mix to reach the time required for complete curing, to determine the emulsified asphalt thin slurry sealing mix construction after the early opening of traffic time.

1、Pneumatic two-way cylinder
2、Rubber gasket with hardness of 60, specification of 28.6 diameter x 6.4mm thickness
3、Air pressure regulator with variable bleeder valve to maintain a constant air pressure
4、Bidirectional control valve can make the rubber base up or down
5、Air pressure gauge:(0-1000Kpa)
6、Pressurization port can be connected with bicycle pump or air compressor to pressurize the cylinder.
7、Torque measuring wrench:(0-6N-M)
8、Ring mold:(6×60mm, 10×60mm)
