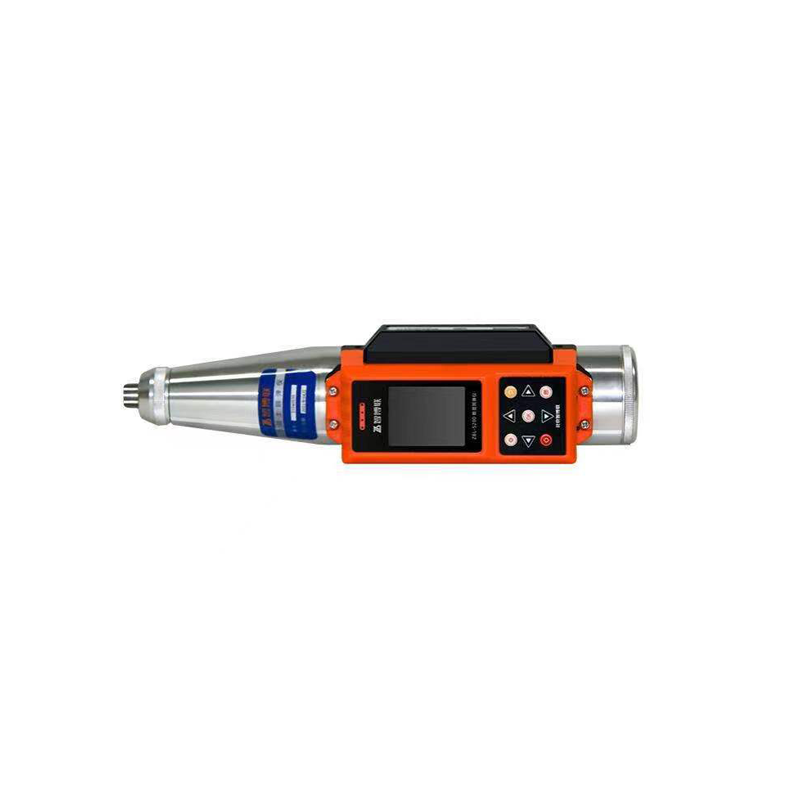

All-Automatic Schmidt Digital Voice Rebound Concrete Test Hammer

ta Collectien Terminal

transducer

mos image sensor

input mode

Automatically record the rebound value

data processing

Automatic data correction, calculation and statistical analysis according to the specification

display usage

LCD

system capacity

Two hundred thousand observation points

power supply mode

Rechargeable large capacity lithium battery

volume

123mm×55mm×25mm

weight

200g

operating ambient temperature

-10℃~45℃

Mechanical resilience

Scope of strength

10-60Mpa

The kinetic energy of the nominal

2.207J

Spring stiffness

7.84N/cm

Impact hammer stroke

75mm

Consistency error

≤±0.5(The difference between the reading of the pointer of the mechanical resilience meter and the reading of the instrument screen)

Steel anvil rate set rebound value

80±2

volume

55×55×270

weight

1.0kg

  operating ambient temperature

-10℃~40℃

   packing specification

Material: engineering plastic  svolume:420*140*335mm

weight:6kg
