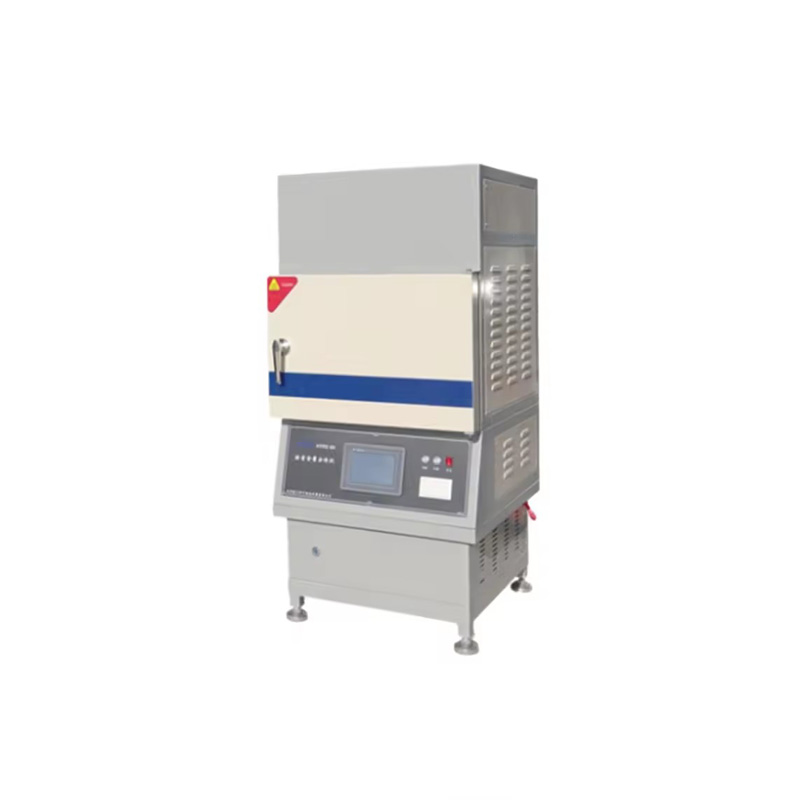

Asphalt Binder Analyser

The Asphalt Content/Binder ignition oven with internal automatic balance is an environmentally-friendly and costeffective method for the accurate determination of asphalt content. It is made of three parts: combustion device (furnace), weight measurement (electronic balance), test control and data processing (microcontroller unit).

1.Model：RS-6

2.Chamber Dimensions：350x440x330 mm( WxDxH)

3.Balance Range：10.0 kg/ 0.1g

4.Operating temperature of Chamber：800 ℃

5.Maximum Sample Mass：4000g

6.recommended sample mass：1200-1800g

7.Test accuracy of asphalt content：0.1%

8.Power Supply：Three-phase four-wire

9.Voltage：380V

10.Dimensions：790 x 735 x 1640 mm
