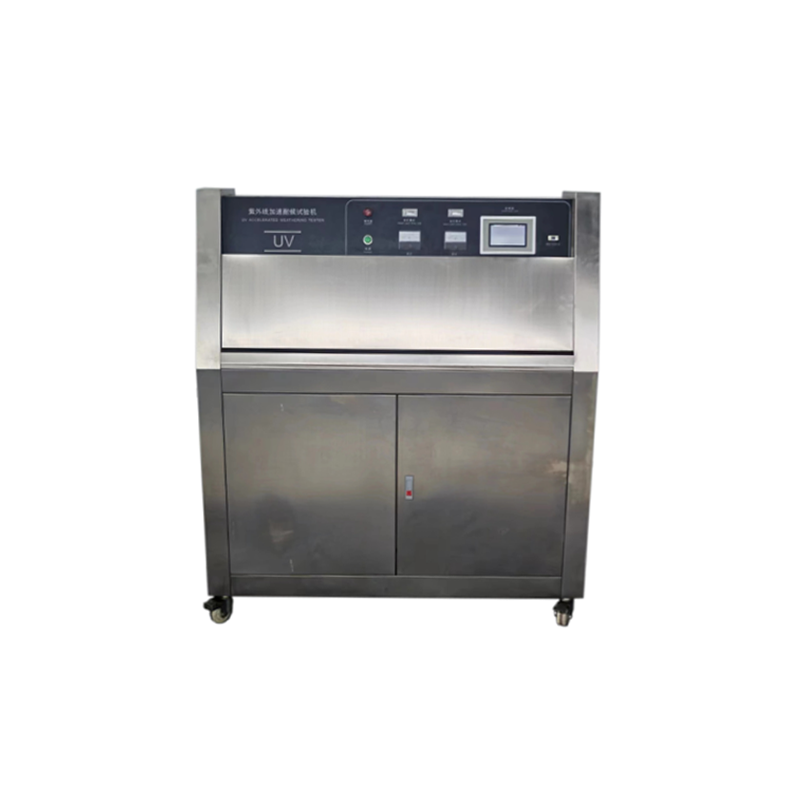

Asphalt Light Aging Test Machine, Bitumen UV Lamp Aging Test Equipment
Asphalt Light Aging Test Machine, Bitumen UV Lamp Aging Test Equipment
Technical parameter:
| Model | ZBRK-4006B Asphalt Light Aging Test Machine |
| Lamps Quantity | UV Lamp 8 (UVA 340 or UVB 313,
Atlas / Q-LAB / Made in China optional) |
| Internal size WxHxD | 1140×400×380mm |
| External dimensions WxHxD | 1320×500×1500mm |
| Illumination temperature range | RT+10℃~70℃ Irradiation |
| Blackboard temperature | 50℃~70℃ Condensing |
| Temperature range | 40 ℃ -60 ℃ |
| Temperature uniformity | ±1℃ |
| Temperature fluctuation | ±0.5℃ |
| Center distance in the tube | 70mm |
| Distance between the sample and the center of the lamp tube | 50±3mm |
| Temperature sensor | platinum resistance. PT100Ω |
| Controller | South Korea TEMI touch screen controller |
| Ultraviolet wavelength UV-A wavelength range | 320~400nm |
| Irradiation intensity | within 1.0W/m2/340nm |
| Number of tubes | L=1200/40W, 8 tubes, 4 tubes on each side, 2 sides in total |
| Lamp life | within 1200h |
| Test capacity | 75 x 290mm 48pcs |
| Test time | 0~999H (adjustable) |
| The sink requires | water depth is not more than 50mm, and there is an automatic water supply controller Inner box material |
| Machine material | SUS 304# mirror stainless steel plate Outer box material The whole machine is SUS 304# stainless steel plate with matte surface treatment |
| Heating system: | fully independent system, stainless steel electric heating tube |
| Humidification system | external isolation type, all stainless steel shallow surface evaporative humidifier |
| Protection device | Non-fuse switch, over-temperature protection switch, fuse, fault warning system |
| Power supply | 220V±5%, single-phase three-wire, 50Hz, 10A, 15A leakage switch required |
| Weight | 120KG |
| Recommended environment: 5~35℃, 40%~85%R•H, 300mm away from the wall | |
Equipment summary:
Asphalt Light Aging Test Machine can simulate the sun, rain and dew to damage the material, UV using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested materials are placed in a certain environment which the light and moisture are alternating. The materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.
Main functions:
UV test machine, the UV lamp can simulate the effect of the sun, condensation and water spray system can simulate the effect of rain and dew. the temperature can be controlled at the process of testing. A typical test cycle is usually testing at UV radiation of high temperature and the 100% humidity at dark; Typically used in paint and coatings, automotive, plastic products, wood products, glue, etc.
Corresponding standard:
Accord with ASTMG53-77,ASTM D4355
Applicable industries:
Bitumen UV Lamp Aging Test Equipment is widely used in paint, resins, plastics, printing and packaging, aluminum, adhesives, auto, cosmetics, metals, electronics, electroplating, medicine, etc.
