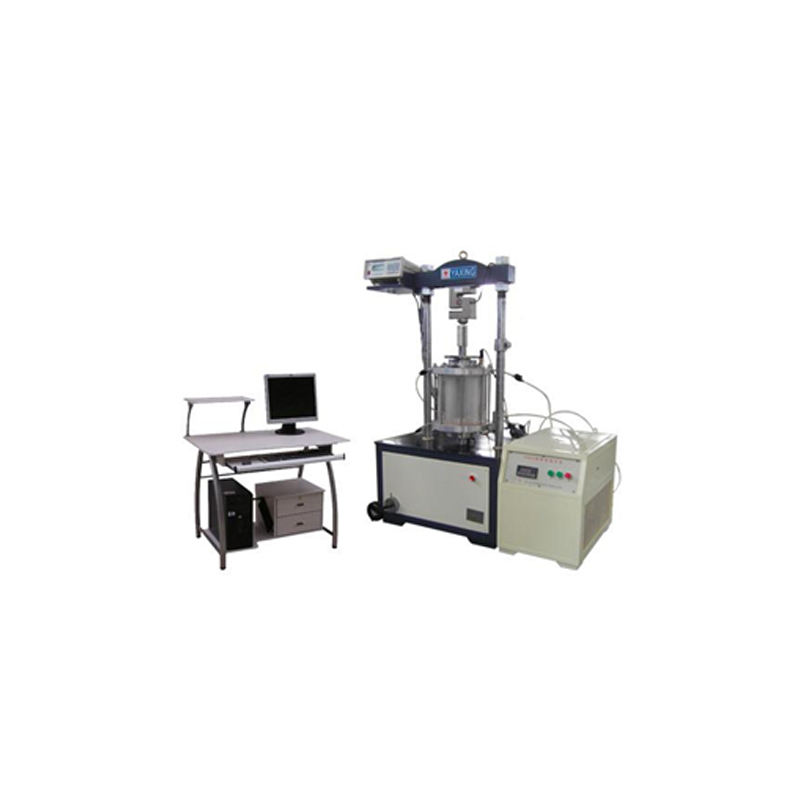

Asphalt mixture triaxial meter

1、Maximum rated load of the system is 100KN
2、Host stepping motor: 1000W, 380V×50Hz
3、Circumference pressure range: 0 ~ 3MPa
4、Electromagnetic heating device: heating range 0 ~ 100 ℃, power supply 220V × 50Hz
5、Counting instrument external power supply: 220V×50Hz
6、Host lifting speed range: 0 ~ 50mm/min stepless adjustable
7、 host lifting stroke: 0 ~ 100mm
8、Pressure chamber limit load pressure: 2Mpa
9、 spoke pressure sensor: 0 ~ 100KN, accuracy: 0.05% FS
10、The center distance between two columns is 420mm.
