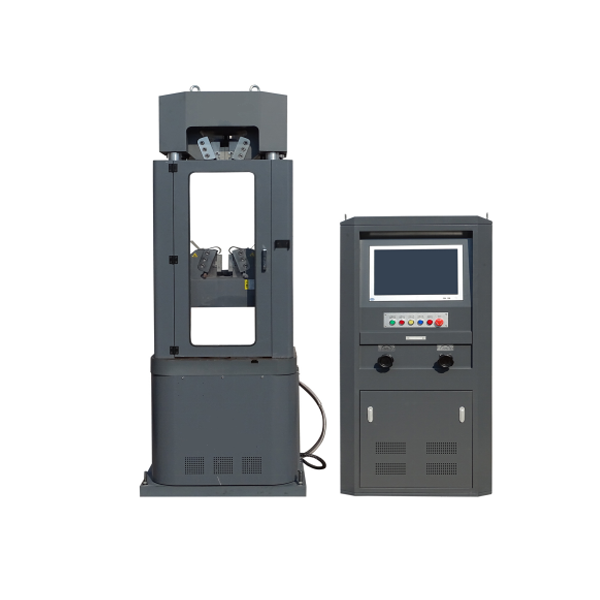

ASTM Electro-hydraulic Servo Universal Testing Machine
[rank_math_breadcrumb]
ASTM Electro-hydraulic Servo Universal Testing Machine
This series of testing machine is loaded by hydraulic pressure, and the manual control technology is used to test the stretching, compression, bending and shearing of metallic and non-metallic materials, showing various curves, forces, deformation, displacement and other closed-loop control methods, which can be switched freely in the test.Automatic recording of stored data.Can meet GB, 1S0, ASTM, DIN, JIS and other standards.
| model | WE-300B | WE-600B | WE-1000B |
| Maximum test force (kN) | 300 | 600 | 1000 |
| Piston stroke (mm) | 200 | ||
| Compression test space (mm) | 600 | ||
| Tensile test space (mm) | 700 | ||
| Power (kW) | 1.5 | ||
| Compression disc (mm) | Φ148 | Φ198 | Φ225 |
| Clamping range of round sample (mm) | Φ10-30 | Φ13-40 | Φ13-40 |
| Clamping range of flat sample (mm) | 0-10 | 0-15 | 0-20 |
| Span of bending fulcrum (mm) | 50-300 | ||
