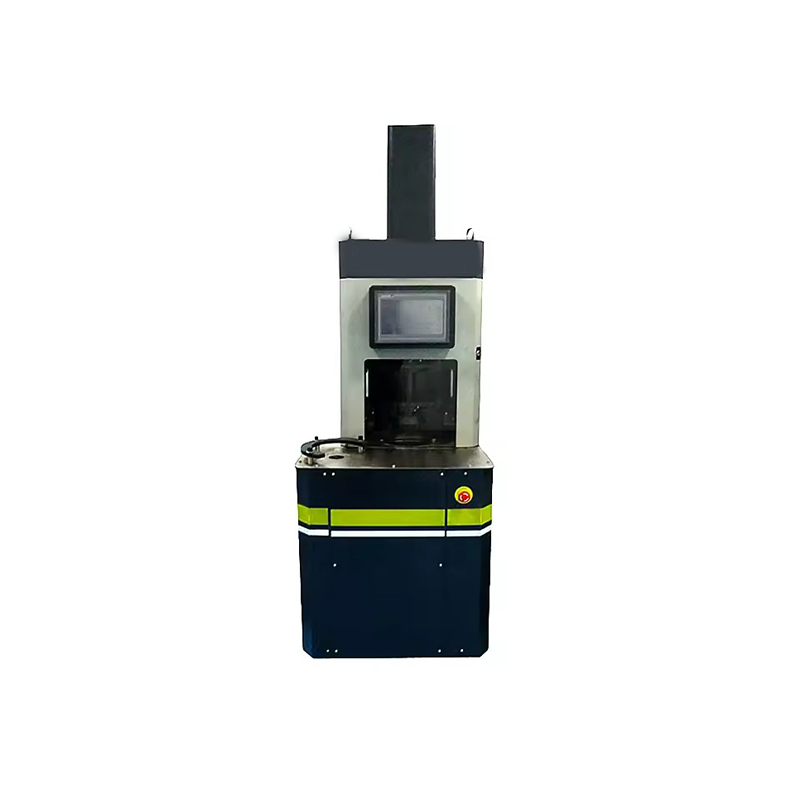

ASTM gyratory compactor

1.Axial pressure pneumatic constant pressure, using imported high-precision constant pressure valve, small fluctuations in axial pressure during the test.
2.The body is integrated with electric mold release device, built-in program-controlled delayed automatic mold release function

3.Electric guard door that can be operated by touch. When automatic compaction occurs, the guard door opens and closes automatically according to the instrument status under the control of the safety program. The special advanced user mode allows to turn off the system safety program, thus realizing the test under the condition of opening the protective door.
Hidden built-in LED lighting system.

4.Adopts imported PLC and 10.1″ configuration touch screen with closed-loop speed control, angle, height, number of laps, density and other information can be displayed in real-time curves, and the specimen forming method can be selected from height-controlled and lap-controlled compaction modes.

5.It can record multiple sets of compaction curve process data and compaction parameters, which can be viewed and exported to EXCEL file via USB.

Compaction specimen size:φ100/φ150 mm; (φ100mm specimen kit is optional)

Preparation specimen height:50 – 200 mm (preparation height greater than 150 mm specimens, need to match the height of 300 mm test mold)

Specimen size:standard 150 mm (100 mm specimen kit is optional), height 250 mm

The height of 300mm can be optional (300mm height die is non-standard custom-made parts)

Rotation angle:0.5 ~ 2.0 ° adjustable. (factory default internal angle 1.16 °)

Rotating working speed:5 ~ 40 r / min adjustable. (factory default: 30 ± 0.5r/min)

Power supply:AC220V±10%/50HZ, peak power: 1.6KW

Overall machine size:1100×800×2120mm (height), net weight:470kg
