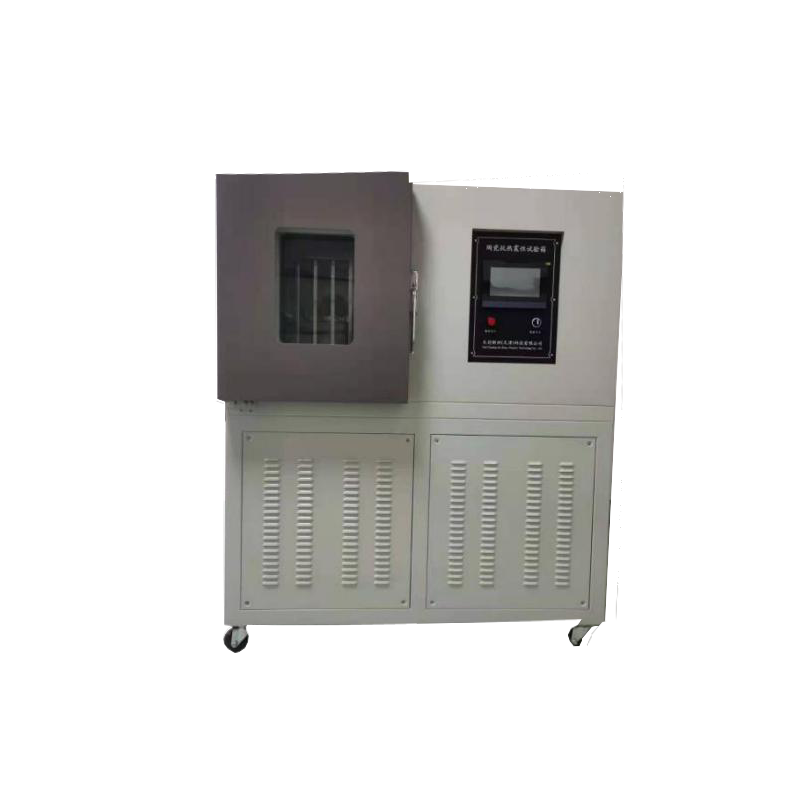

Automatic Ceramic Thermal Shock Resistance Test Chamber

1. Maximum working temperature of the test area: 180℃.
2. Test area volume: 500x600x600, test piece basket: 320 * 300 * 320
3. Temperature control accuracy: ±1℃.
4. test mode: according to set the number of tests automatic cycle completion.
5. Power supply: three-phase five-wire system three red for the fire line, black for the zero line, two-color line for the ground; machine configuration.
Phase sequence, missing items, protection, if the initial connection to the power supply, power supply indicator does not light up, red fire any two switched can be; equipment operating power: 6kw.
6. Sink temperature control range: 15 ℃ – 25 ℃
7. Overall dimension: 1600x850x1650mm.
8. Timer range: 0~9999 minutes.
9. Equipped with electric automatic basket up and down, automatic door opening and closing device.
