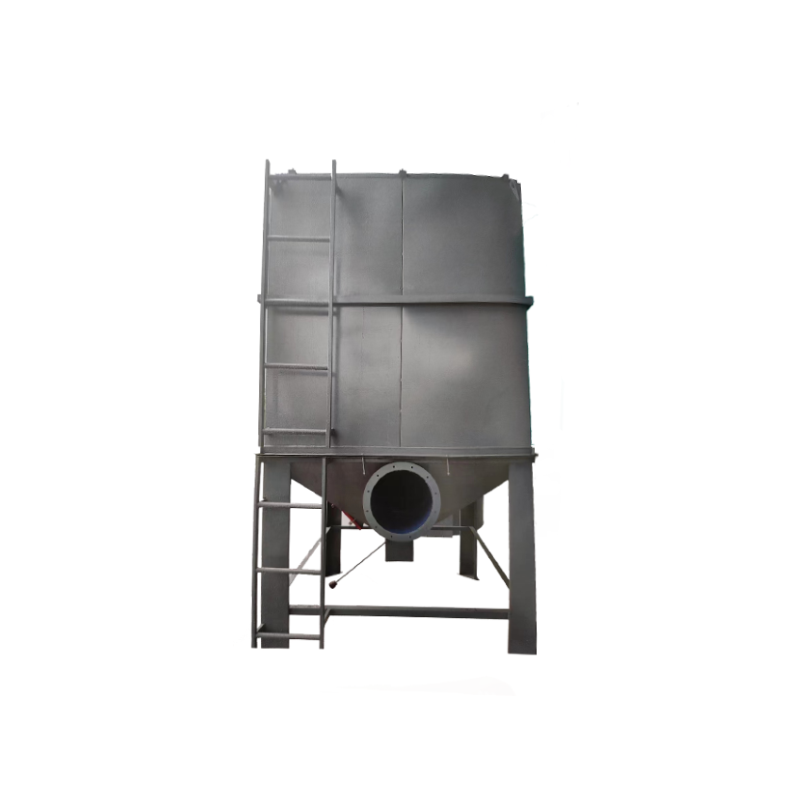

bag filter

Product Features：

1. Adopt pulse blowing ash cleaning technology.
2. Adopting pulse blowing ash cleaning, the purpose of thorough ash cleaning can be achieved by blowing once.
3. Overhauling and replacing the bag can be carried out in separate rooms without stopping the system fan and under normal operation conditions of the system. The keel of the filter bag adopts polygonal shape, which reduces the friction between the filter bag and the keel, prolongs the service life of the filter bag, and facilitates loading and unloading.
4. Adopting the upper bag extraction method, the dirty bag is put into the ash hopper in the lower part of the box after extracting the skeleton when changing the filter bag and taken out from the manhole, which improves the operating conditions for changing the bag.
5. The air inlet and outlet ducts are compactly arranged with small air resistance.

Technical parameters:
1. Bag specification: 2 meters long, Ф130mm
2. Filter area is about 100 square meters
3. Number of bags: 120
4. The wind speed is about 1 meter / second
5. Air volume: 8000m³/h
