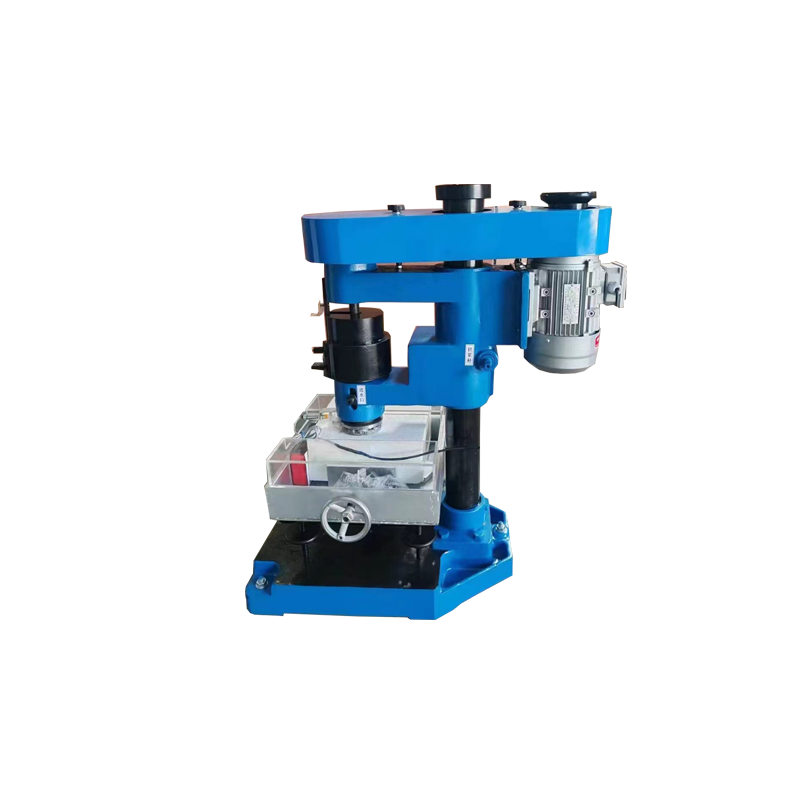

Ball Abrasion Tester

This testing machine is mainly applicable to the national standard GB/T16925-1997 “concrete and its products abrasion resistance test method” for concrete and its products (pavement tiles, floor tiles, artificial marble, terrazzo, etc.) and other building materials for wear resistance test, it is the test of pavement and ground material abrasion resistance and test machine specialization

1.Specification Model: GZM-10
2. Grinding head: 13*15.875mm ball bearing
3. Pressure load on grinding head: 154±2.5N
4. Rated rotational speed of spindle load: 1000-1050r/min
5. Grinding stone working hardness: >HRC62
6. Measuring stroke: 10mm
7. Noise: ≥75dB
8.Applicable specimen specification grinding area: ≤100*100mm ≥300*300mm
9. Motor power: 0.75kw
10.Voltage: 380V
11.Overall dimensions (L*W*H): 700*450*800mm
12.Net weight: 160kg
