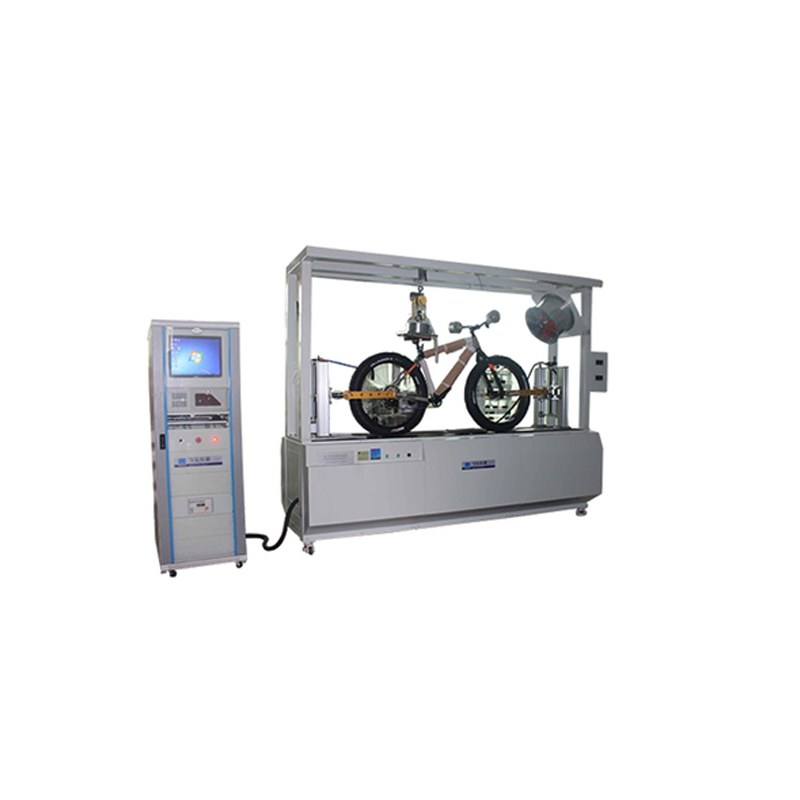

Bicycle Braking System Durability Testing Machine

Brake & run test

Brake test

 Run test

Adjust range between front & rear wheels

mm

860~1200/(600~1200 optional) / Customer specified

Counter setting

diameter

760/(560 optional ) / Customer Specified

Jump block amount& combination phase

EN14764 standard

EN14764 standard

power

Servo Motor + reducer + Clutch

AC Reduce Motor+ speed Regulation+ clutch

Testing speed(km/hr)

7-26km/hr(special speed-upon request)

Crank Drive Mechanism(optional)

Testing speed(km/hr)

7-26km/hr(special speed-upon request)

Counter Weight

Seat Post(Kg)

36

Overall Weight 120

Pedals(Kg)

18

Handlebar(Kg)

6.75

Luggage Carriers(Kg)

10.18.25.according to luggage carriers, area 204X240(Assembly Type)

Head Tube(Kg)

14

Force to Brake Handlebars

ConformEN14764 Standard(Auto weight 40~180N)

Brake Force

Brake Force(N)

700

±1

N/A

Resolution

N/A

Accuracy

N/A

Power

3;220V;50HZ(3;380V optional)

Consumption

KW

10

5

8

Dimension(WxDxH)

3030x1200x2900mm (Ref Only)

Standard Accessories

Tool Kitx1, Operational Manual in English x1, Testing dead weigh, Warranty Certificationx1
