Bolt anti slip coefficient tester

Mainly used for connecting pairs of large hexagonal high-strength bolts (M16, M20, M22, M24, M27

Detection of anti slip coefficient between M30) and torsion shear type high-strength bolt connection pairs (M16, M20. M22, M24, M27, M30) and sliding plate.

There are four physical channels and a total of 24 logical channels in 6 groups. With parameter backup and recovery functions, according to the testing requirements of high-strength bolts

Peak hold function has been set

Applicable standard: GB50205-2001 “Code for Acceptance of Steel Structure Engineering”

Technical parameters

1. Measurement range: 30-400kN

2. Test force resolution: ± 0. IKN

3. Test force indication error: “Soil 2.0%

4. Display method: touch screen display

5. Overall dimensions: (length * width * height) 59 * 59 * 125cm

6. Weight: 83kg

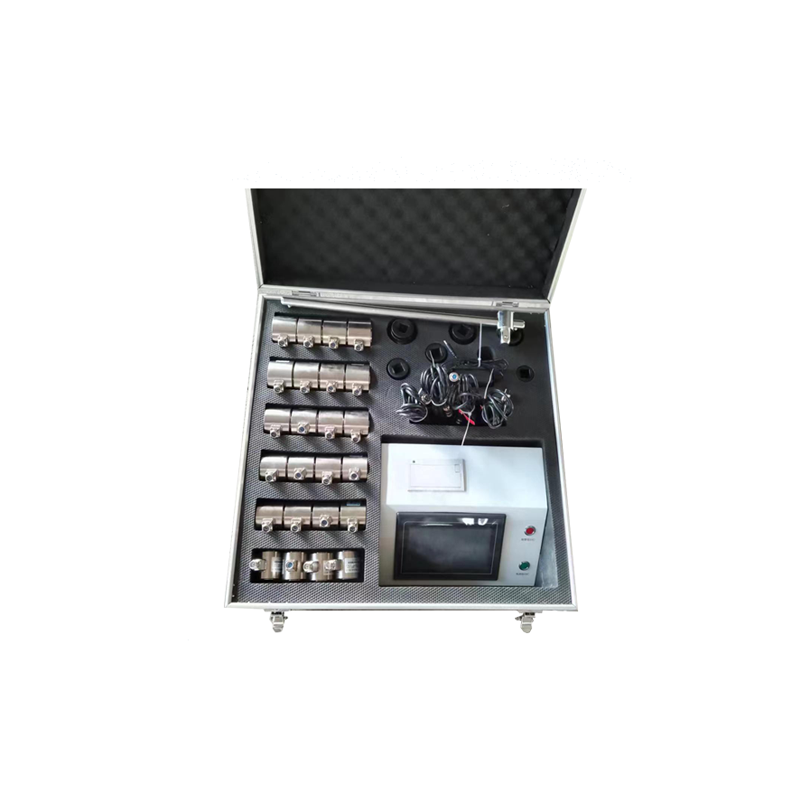

Main configuration

1. Touch screen control cabinet 1 set

2. M16 sensor -120kN 4 pieces

3. M20 sensors -180kN 4 pieces

4. M22 sensors -220kN 4 pieces

5. M24 transmission -260kN 4 pieces

6. M27 sensor -330kN 4 pieces

7. M30 field sensors -400kN, 4 pieces
