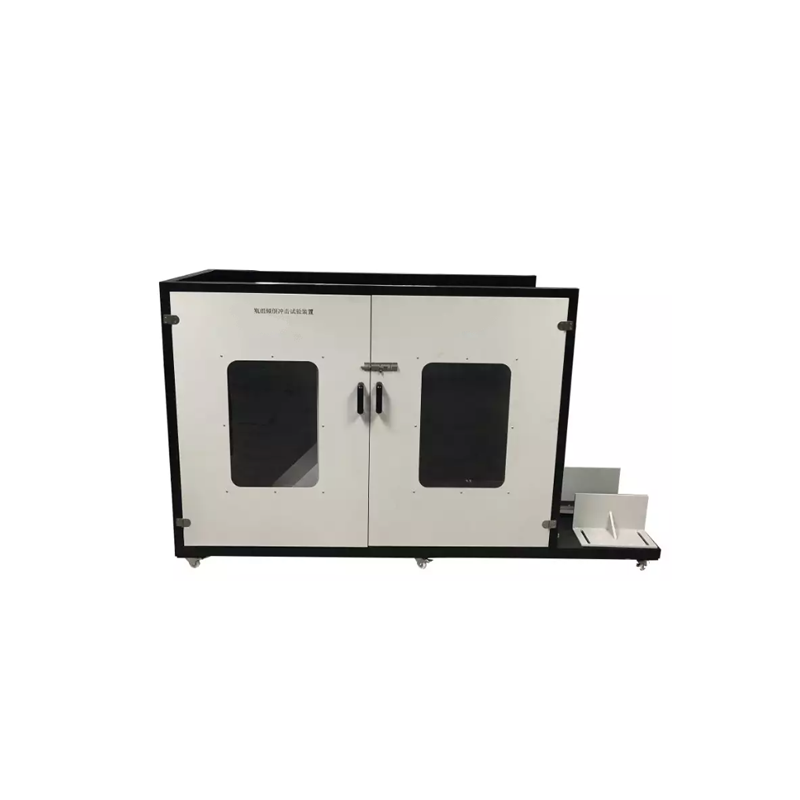

Bottle Tipping Impact Tester

According to GB25972-2010 “gas fire extinguishing systems and components” in the group of bottles tipping impact test requirements, applicable to a variety of bottles tipping test, this equipment has the advantages of simple operation, easy to use, etc., to meet the standard requirements for the test specimen of the group of bottles tipping test, this equipment is suitable for all levels of local quality supervision and inspection departments and fire equipment manufacturers, a variety of bottles tipping test. Widely used in product quality inspection center, scientific research colleges and universities, factories and other units of the bottle group tipping test and development and research work.

Technical Parameters

1.Equipment size:(LxWxH)2730mmx780mmx1550mm
2. Mild steel bar: 50mm diameter, 350mm long.
3. Rigid pad: made of steel column, the height of the pad up to 10 ° (calibration angle)
4.Applicable bottles: Maximum diameter: 350mm, Maximum height: 1500mm, Minimum diameter: 80mm, Minimum height: 320mm.
