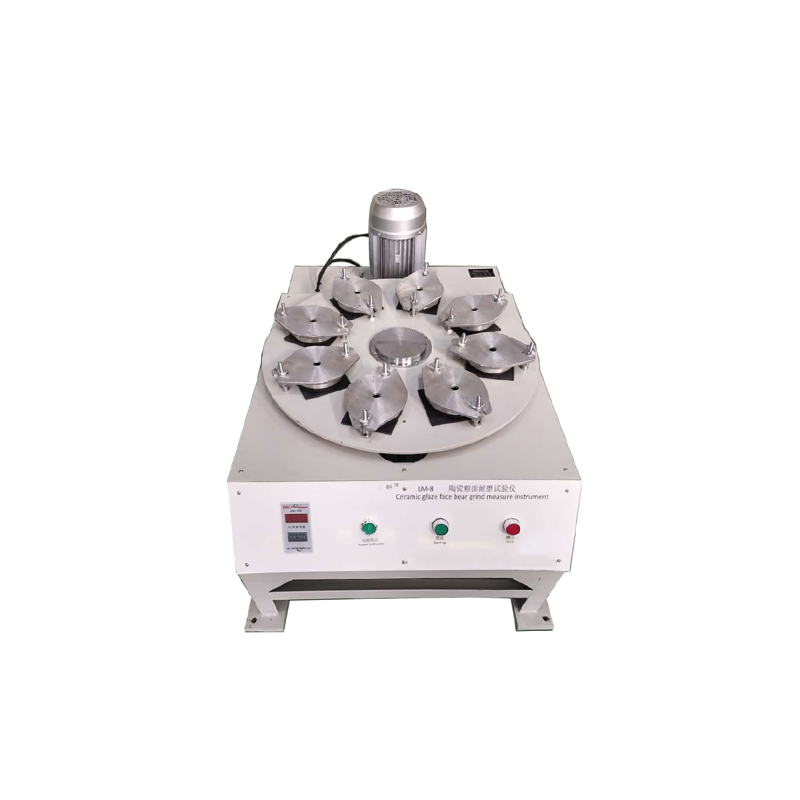

Ceramic Tile Glaze Abrasion Tester

1. Specimen size: 100 × 100 (mm); can be made at the same time for 8 samples wear test, less than 8 samples wear test can also be common;
2. Support the center of the turntable and the center of each specimen distance of 195, and the two adjacent specimen fixture spacing is equal
3. Support disk rated speed: 300 ± 10% rp / min
4. Eccentricity:e =22.5(㎜)
5. The inner diameter of the metal fixture with rubber seal Ф83, the height of the space within the fixture is 25.5 (mm), providing a test area of about 54 (mm)
6. Power: 1.1Kw
7. Electricity: 380V ± 10%, 50HZ ± 10%
8. External dimensions: (L * W * H) 105 * 74 * 72cm
9.Weight: 138kg
