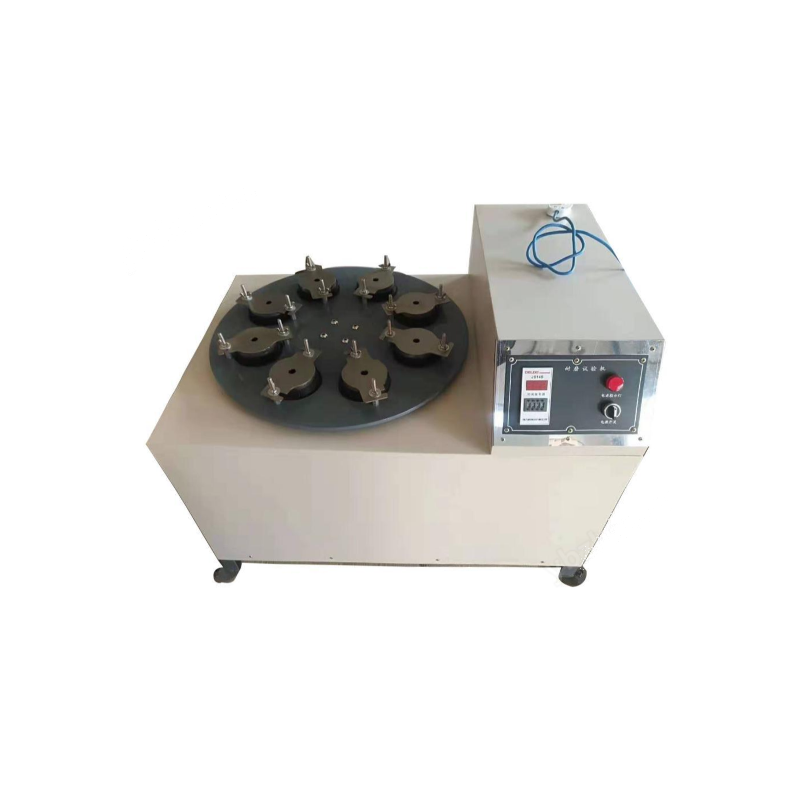

Ceramic Tile Glaze Abrasion Tester

1、 the size of the test: 100 * 100mm, can be made at the same time for 8 samples (also known as eight grinding) of the wear test, less than 8 samples of the wear test can also be common.
2、 support the center of the turntable and the center of each sample distance of 195, and the adjacent two sample fixture spacing is equal.
3、Rated speed of supporting disk:300±10%rp/min.
4、Eccentricity:e = 22.5mm.
5、Metal fixture with rubber sealing has an inner diameter of φ83, and the height of the space inside the fixture is 25.5mm, providing a test area of about 54 square centimeters.
