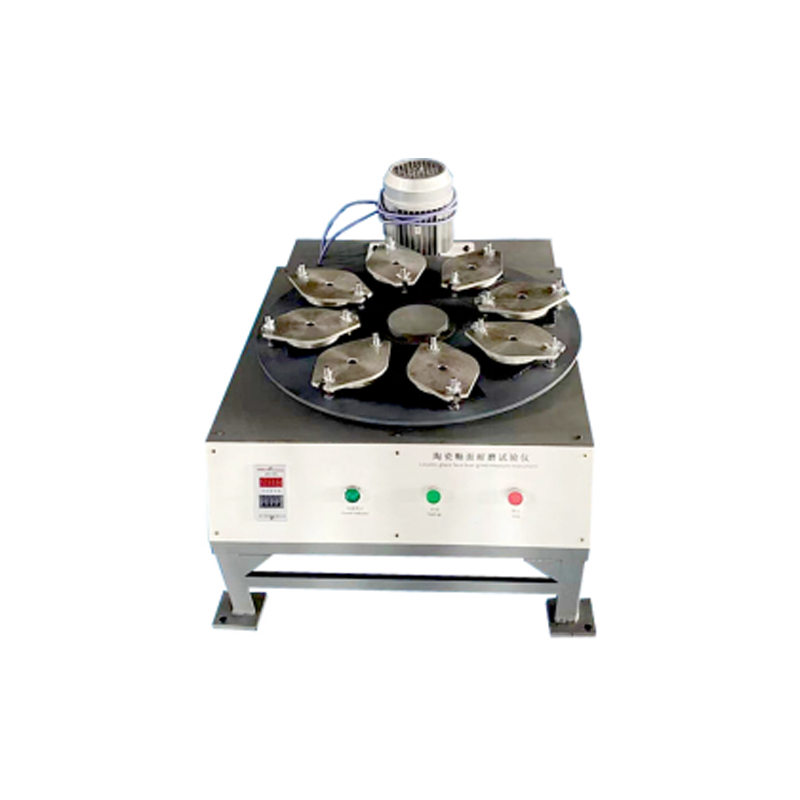

Ceramic tile glaze wear tester

Sample size: 100 × 100 (mm); Can conduct wear resistance tests on 8 samples simultaneously, and wear resistance tests on less than 8 samples can also be universal;
The distance between the center of the supporting turntable and the center of each sample is 195, and the spacing between two adjacent sample clamps is equal;
Rated speed of support plate: 300 ± 10% rp/min;
Eccentricity: e=22.5 (mm);
Inner diameter of metal fixture with rubber seal Ф 83, the height of the space inside the fixture is 25.5
(mm), the provided test area is approximately 54 (mm);
Power: 1.1Kw;
Power supply: 380V ± 10%, 50HZ ± 10%;
External dimensions: (length * width * height) 105 * 74 * 72cm
