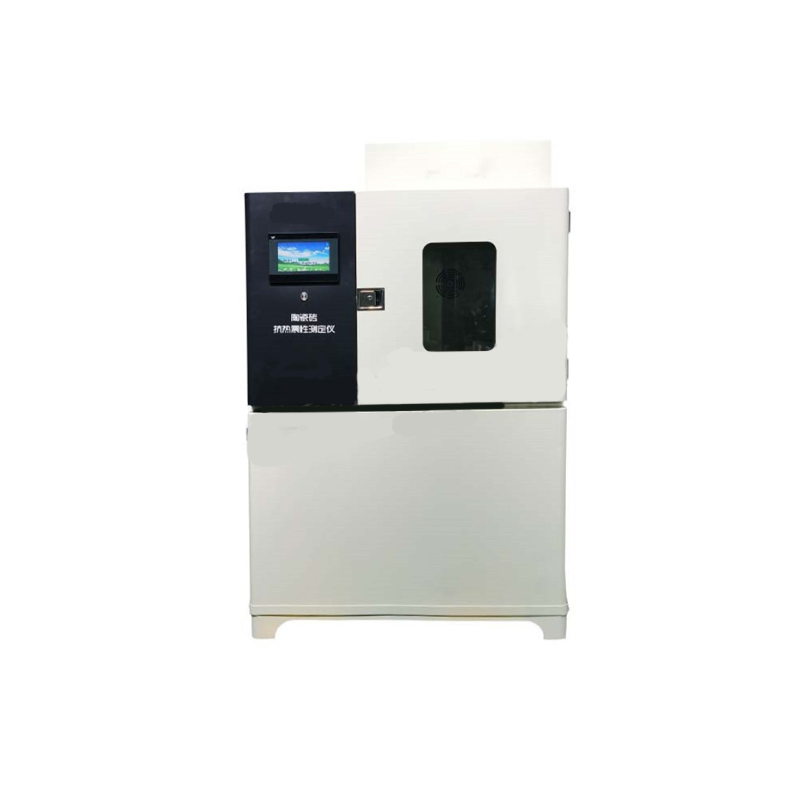

Ceramic Tile Thermal Shock Resistance Tester

1、Maximum working temperature of furnace body:150℃.
2、Size of equalization zone and temperature difference:300x300x300mm
or 600x300x600mm, ± 5 ℃ (user optional)
3、 temperature control accuracy: ± 5 ℃ (150 ℃)
4、Effective volume (basket size):300x300x300mm
or 600x300x600mm (user option)
5、Temperature control range of water tank:15-30℃.
6、Temperature control precision:±2℃.
7、Water temperature unevenness:±2℃
8、 the maximum power consumption of the heating furnace: 3kw
9、 water heater maximum power consumption: 1kw
10、Compressor power:148w
11、 timer range: 0 ~ 120 minutes
12、Ambient temperature:0~40℃.
13、Power voltage:220V,10kw,50HZ
14、Cooling water inlet temperature: below 35℃
15、The upper part of this instrument is hot box (i.e. drying box), the lower part is cold box (i.e. constant temperature water tank).
The water tank can maintain a constant temperature of the water, water flow rate of 4L / min
16、Dimensions:1300x700x1700mm
17、Weight of the whole machine:295Kg
