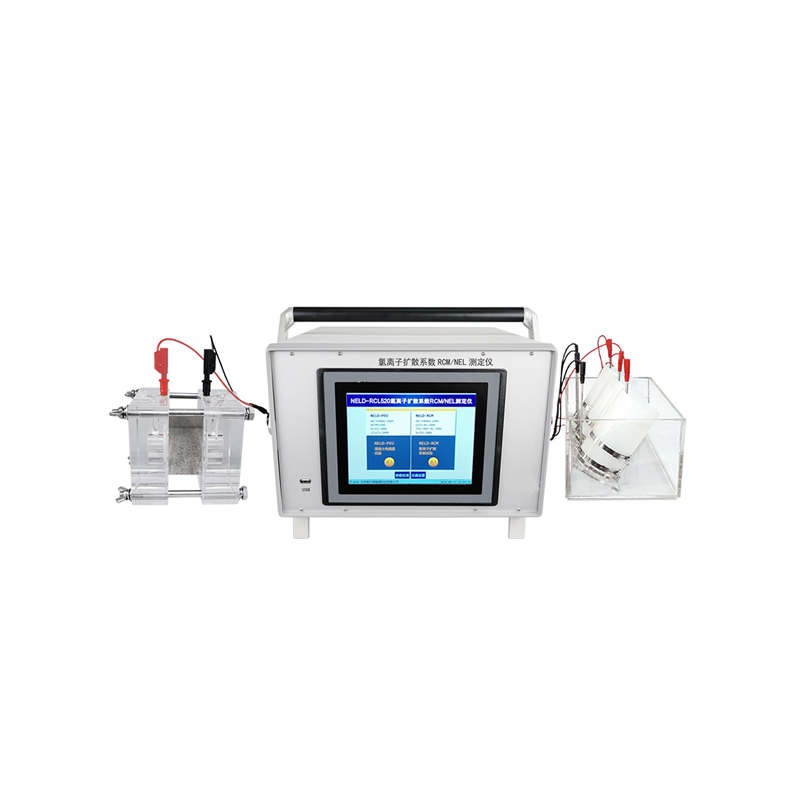

Chloride Diffusion Coefficient RCM/NEL Tester

1. Test channel: 6 channels for RCM method and 1 channel for NEL method.
2. Test method: two methods in one machine, at the same time to meet the national standard RCM method and NEL method
3. RCM method output voltage: 10V, 15V, 20V, 25V, 30V, 35V, 40V, 50V, 60V.
4.NEL method output voltage: (1~10)V
5. Measuring time of RCM method: Measuring time: 6～96hrs (national standard), 4～168hrs (line standard)
6. Measuring time of NEL method: ≤10min
7. Output voltage accuracy: RCM method ± 0.1V, NEL method ± 0.02V (provide the certificate of the Measurement Institute)
8. Current measurement accuracy: RCM method ± 0.1mA, NEL method ± 0.02mA (to provide the certificate of the Institute of Weights and Measures)
9. Independent temperature measurement device: Pt100
10. Temperature measurement accuracy: ≤ 0.1℃
11. Data export: data through the software can be generated Excel file
12. Short-circuit protection: instantaneous short-circuit protection, automatic restoration and restart
13. Power failure memory: restart after power failure, the data automatically restore the memory, the test can be continued
14. Fixture: imported organic glass material, machined production
15. Input voltage: AC220V ± 10%, 50Hz
16.Host size: 390×360×190(mm)
17.Host weight: 9.5kg
