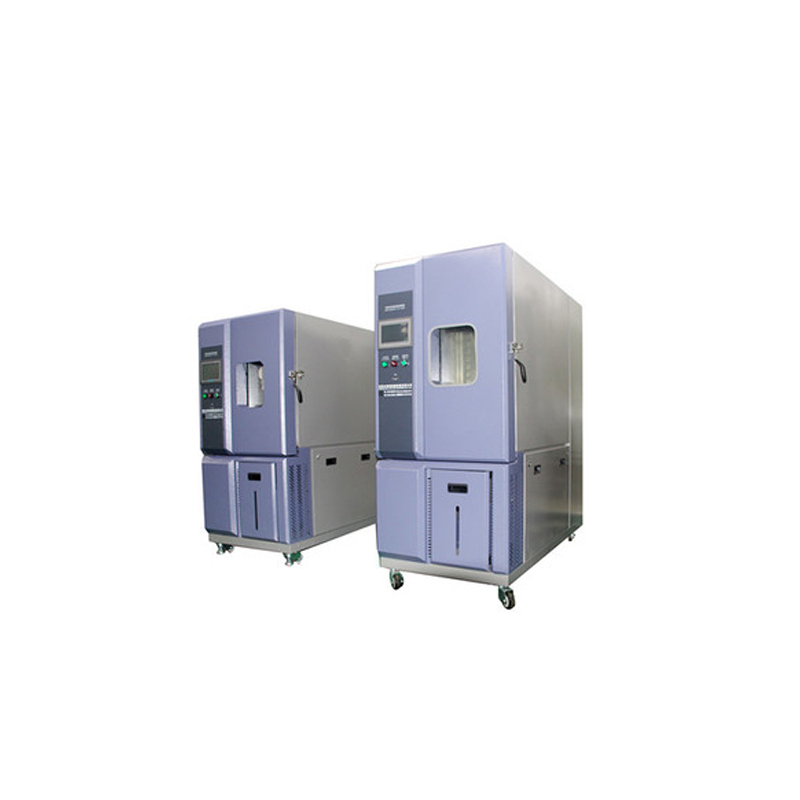

Climate Chamber Testing Control Environmental Tester Cheap Climatic Temperature Humidity
Temperature and Humidity Test Chamber is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. Suitable for testing the quality of products such as electronics, electrical appliances, mobile phones, communications, meters, vehicles, plastic products, metals,food, chemicals, building materials, medical care, aerospace, etc.
|
Internal dimension (W*D*H)
|
400*500*500mm
|
|
External dimension (W*D*H)
|
600*1280*1380mm
|
|
Temperature range
|
-70~+150℃
|
|
Temperature fluctuation
|
±0.5℃
|
|
Temperature uniformity
|
2℃
|
|
Humidity range
|
20~98%RH (Refer Image below)
|
|
Humidity fluctuation
|
±2.5%RH
|
|
Humidity uniformity
|
3%RH
|
|
Cooling speed
|
1℃/min in average (without loading)
|
|
Heating speed
|
3℃/min in average (without loading)
|
|
Internal chamber material
|
SUS#304 stainless steel, mirror finished
|
|
External chamber material
|
Stainless steel
|
|
Cooling method
|
Air cooling
|
|
Controller
|
LCD touch screen, programmable control temperature and humidity
Can set different parameter for cyclic test |
|
Insulation material
|
50mm high density rigid Polyurethane foam
|
|
Heater
|
Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
|
|
Compressor
|
France Tecumseh compressor x 2sets
|
|
Lighting
|
Heat resistance
|
|
Temperature sensor
|
PT-100 dry and wet bulb sensor
|
|
Observation window
|
Tempered glass
|
|
Testing hole
|
Diameter 50mm, for cable routing
|
|
Sample tray
|
SUS#304 stainless steel, 2pcs
|
|
Safety protection device
|
Protection for leakage
Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
