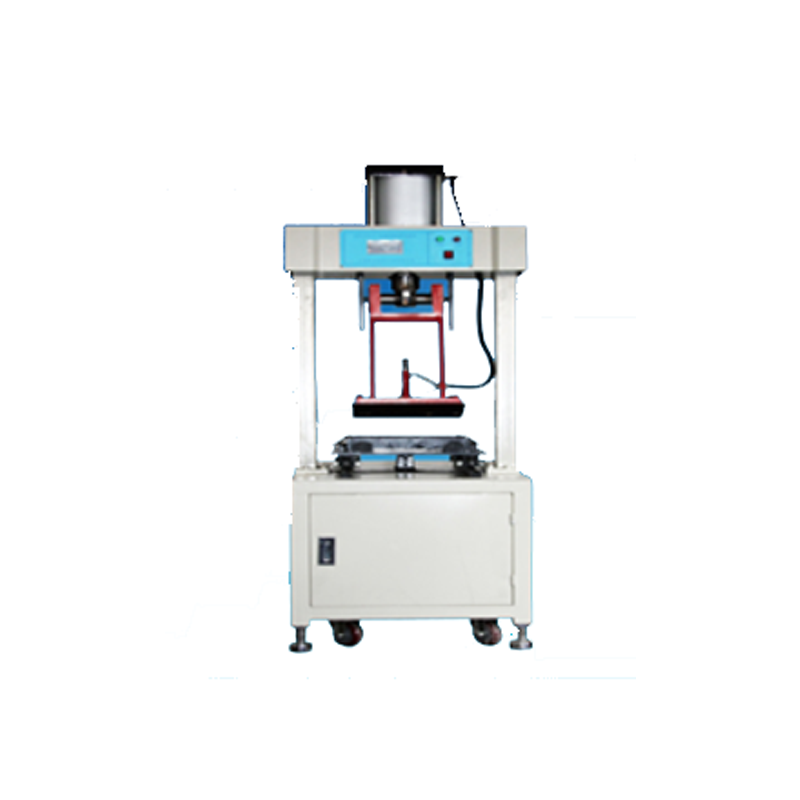

CNC automatic rutting specimen molding machine

1、Mill wheel radius: 500 mm, width 300 mm
2、 Control range of compacting line load of mill wheel: (200~700)N/㎝ (can be adjusted arbitrarily, and adjusted to 300 N/㎝ before leaving the factory)
3、Accuracy of control of compacting line load of mill wheel: ±3 N/㎝.
4、 Temperature control range of milling wheel: (room temperature~200) ℃.
5、Accuracy of milling wheel temperature control: ±5 ℃.
6、Milling times: 12 times/min ± 1 time/min.
7, test mold specifications: 300 mm × 300 mm × (30 ~ 100) mm
8、Outside size: 1200mm×700mm×2000mm (length×width×height)
9、Weight of the whole machine: 350kg
10、Working gas source: Nominal volume flow: 40L/min, rated exhaust pressure: 0.7Mpa.
11、Working power supply: AC380V, 50Hz, 3.0kW (three-phase four-wire system, with zero line)
