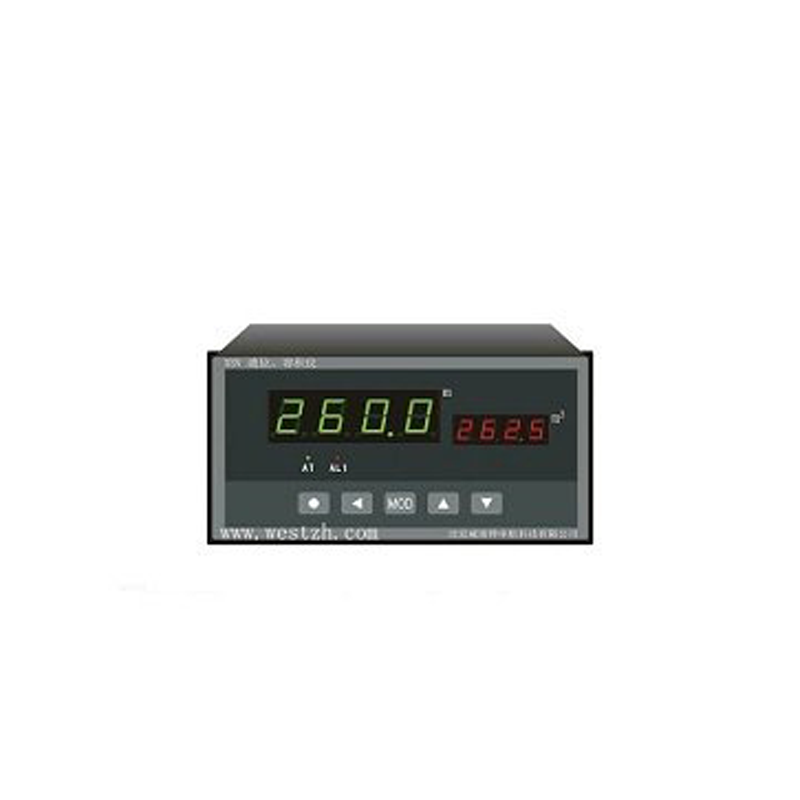

Compression Type Strain Gauge Weight Sensor Load Cell With Digital Readout

Performance Indicator
Overall Precision : 0.05(linearity+ hysteresis + repeatability)
Sensitivity: 2.0 mV/V
Excitation Voltage: 5 -12V DC (recommend 10V )
Creep (in 30 min): ±0.05%F.S/30min
Zero Balance : ±1%FS
Input Resistance ; 380±10Ω
Output Resistance : 350±3Ω
Insulation Resistance : ≥5000MΩ

Applications
These load cell calibrator is used to calibrate the load of testing machine and hardness
tester, and also can be used for force measuring. It is digital display type with high
accuracy of less than +0.3%, and easy to operate.
