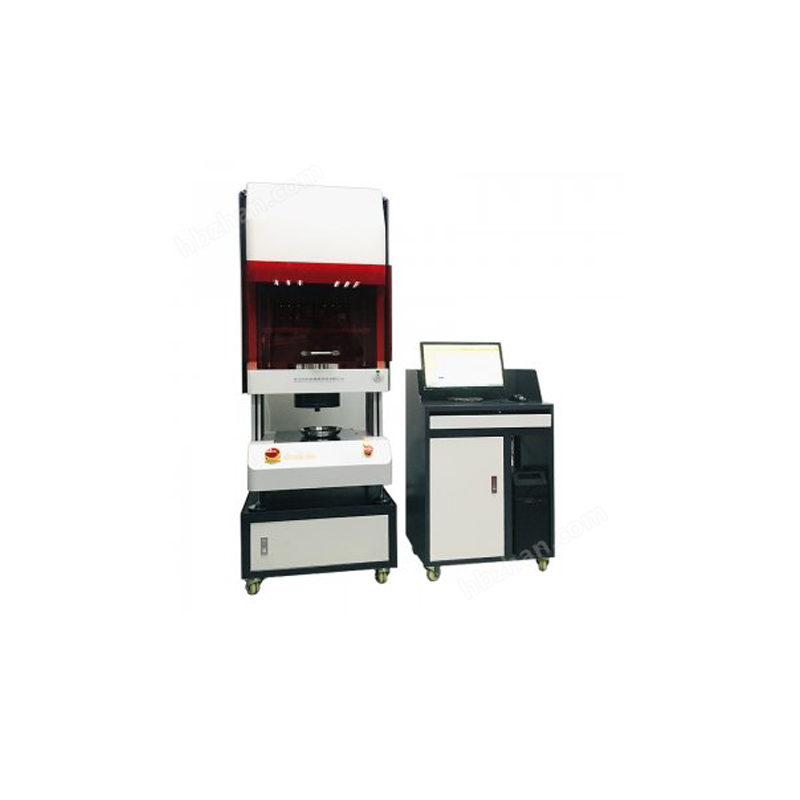

Computerized Programmable Viscosity Characteristics Capillary Rheometer for Rubber

Test capacity

5kN

10kN

20kN

Test speed

0.005-500 mm/min

Load accuracy

±0.5%

Load resolution

100000 Yards

Stroke accuracy

±0.5%

Deformation accuracy

±0.5%

Deformation resolution

0.01mm

Dynamic speed ratio

1:40,000

Max. Test temperature

400°C  can be custom to 500°C

Temperature control

PID control, resolution of 0.1 ° C, the degree of error <± O.5 ° C

Heating rate

1 — 10 ℃ / min, continuously adjustable, and rapid heating

Temperature accuracy

<± 0.5 ℃

Temperature resolution

0.1℃

Barrel diameter

12 mm (15 mm, 9.5 mm optional customization)

Barrel length

200 mm (other lengths acceptable customized)

Barrel Material

tungsten carbide

Test bore

electric heating test chamber, the swappable cartridge

Pressure Sensor

Capacity

500 bar

1000 bar

2000 bar

Accuracy

< 0.25%

Material

Stainless steel, corrosion resistant, high temperature

Capillary rheometer

Mouth membrane materials

tungsten carbide

Size(L/D)

5/1,10/1,20/1,40/1

(can be do other size 1.5/1,2.5/1,3/1,5/1)mm

Plug diameter:

φ11.28 -0.012mm-0.05mm

Plug area

1cm2

Test modes

  constant speed, constant voltage, transformer, variable speed, temperature gradient mode

Software

ZL SYSTEM

Power

220V,50/60Hz,8A

220V,50/60Hz,12A

Weight

200 kg

Accessories

manual cleaning tool set
