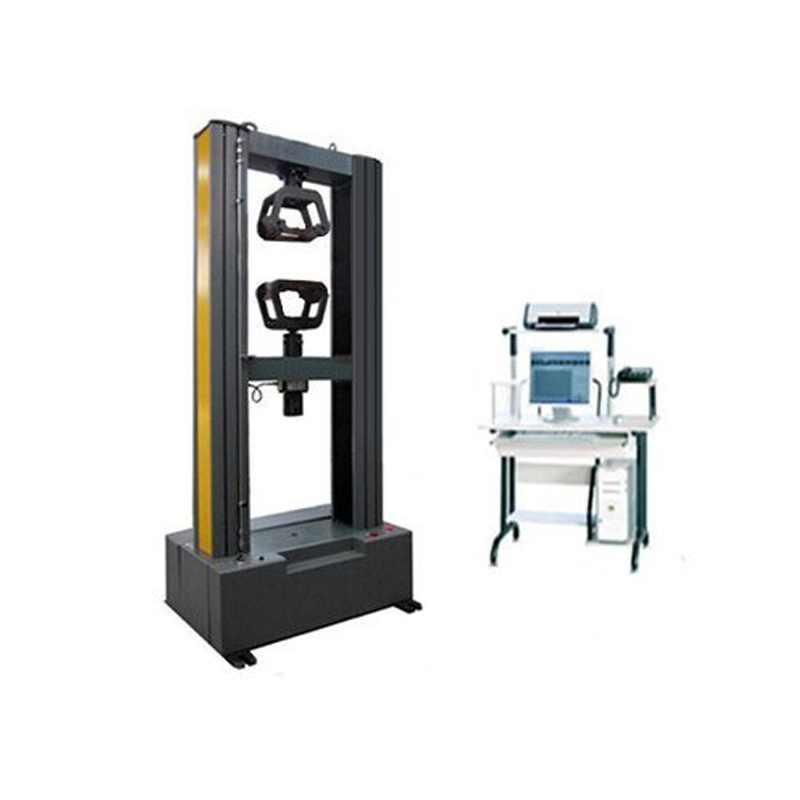

Concrete brick flexural and compression testing machine
Concrete brick flexural and compression testing machine
This series of testing machine is loaded by hydraulic pressure, and the electro-hydraulic servo control technology is used to conduct tensile, compression, bending, shear and other tests on metallic and non-metallic materials, showing a variety of curves, forces, deformation, displacement and other closed-loop control methods, which can be switched freely in the test.Automatic recording of stored data.
|
Maximum test force (kN) |
100 |
|
Testing machine accuracy level |
Level 1 |
|
Test force collection method |
Wheel spoke load sensor |
|
Piston stroke (mm) |
150 |
|
Clamping way |
hydraulic pressure |
|
Test control mode |
Microcomputer servo control |
|
Compression test space (mm) |
600 |
|
Tensile test space (mm) |
700 |
|
Power (kW) |
1.1 |
|
Compression disc (mm) |
Φ148 |
|
Clamping range of round sample (mm) |
Φ6-12,Φ12-20 |
|
Clamping range of flat sample (mm) |
0-10 |
|
Number of upright posts (lead screws) |
6column |
|
Overall dimension of main engine (mm) |
620*520*1723 |
|
Weight of main engine (kg) |
1620 |
|
Size of control cabinet (mm) |
1010*640*840 |
|
Weight of control cabinet (kg) |
150 |
