Concrete Compaction Factor Test Apparatus

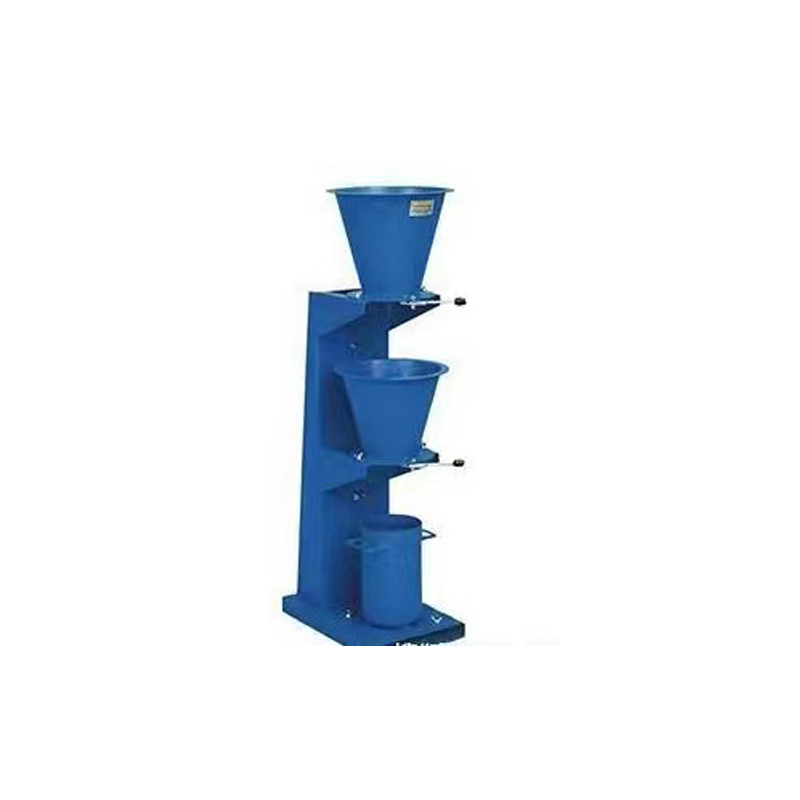

The apparatus is used for determining the workability of fresh concrete, provided the maximum size of the aggregate does not exceed 38 mm. The test is particularly useful for concrete mixes of very low workability where true slump values are not reliable. It consists of two rigid conical hoppers and a cylinder mounted on a rigid metal frame. The lower openings of the hoppers are fitted with hinged trap-doors having quick release catches. A circular metal plate is provided to cover the top of the cylinder.
