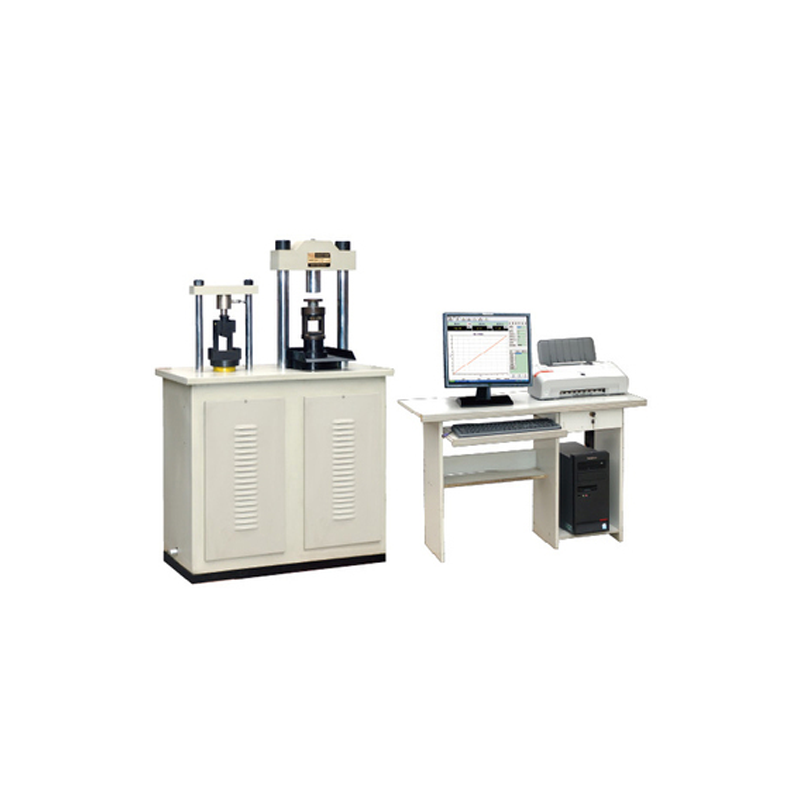

Concrete compression and flexural testing equipment machine
This series of testing machine takes hydraulic pressure as power, USES electro-hydraulic servo control technology to test the compressive mechanical properties of cement, mortar, brick, concrete and other building materials, and shows the loading force value, loading speed and loading curve. Test data is processed, stored and printed automatically.
| Maximum compressive/flexural test force (KN) |
300/10 |
| experimental precision: |
Level 1 |
| Stroke of compression piston (mm): |
80 |
| Stroke of folding piston (mm): |
60 |
| Compressive compression space (mm): |
180 |
| Folding compression space (mm): |
180 |
|
Fixed upper platen size (mm): |
φ108/φ60 |
| Ball head type upper pressing plate size (mm): |
φ168 |
| Lower platen size (mm): |
φ207 |
| Motor power (KW): |
0.75 |
| Overall dimension of main engine (mm): |
560×400×1340 |
| Weight (kg) : |
520 |
| External dimension of control cabinet (mm): |
540×500×82 |
