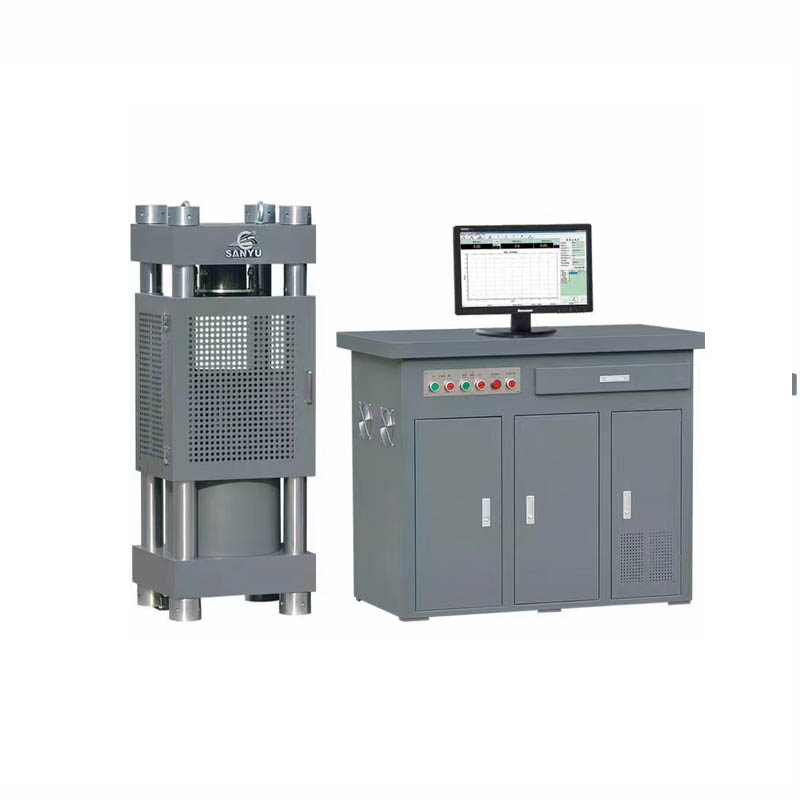

Concrete Cube Compression Testing Machines

This series of testing machine takes hydraulic pressure as power, USES electro-hydraulic servo control technology to test the compressive mechanical properties of cement, mortar, brick, concrete and other building materials, and shows the loading force value, loading speed and loading curve. Test data is processed, stored and printed automatically.

Maximum test force(KN):

HYE- 2000

HYE-2000A

HYE-2000B

Test accuracy:

Level1

Level1

Level1

Space adjustment mode:

Block adjustment

Manual lead screw adjustment

Electric lead screw adjustment

travel of piston(mm):

80

80

80

Sensor type:

oil pressure

oil pressure

oil pressure

Maximum distance between two pressure plates(mm):

350

350

350

Size of upper platen(mm):

φ225

240×240

240×240

Lower platen size(mm):

φ295

350×260

350×260

motor power(KW):

0.75

0.75

0.75

Main engine dimensions(mm):

900×400×1250

985×600×800

985×600×800

total weight (kg):

920

900

910
