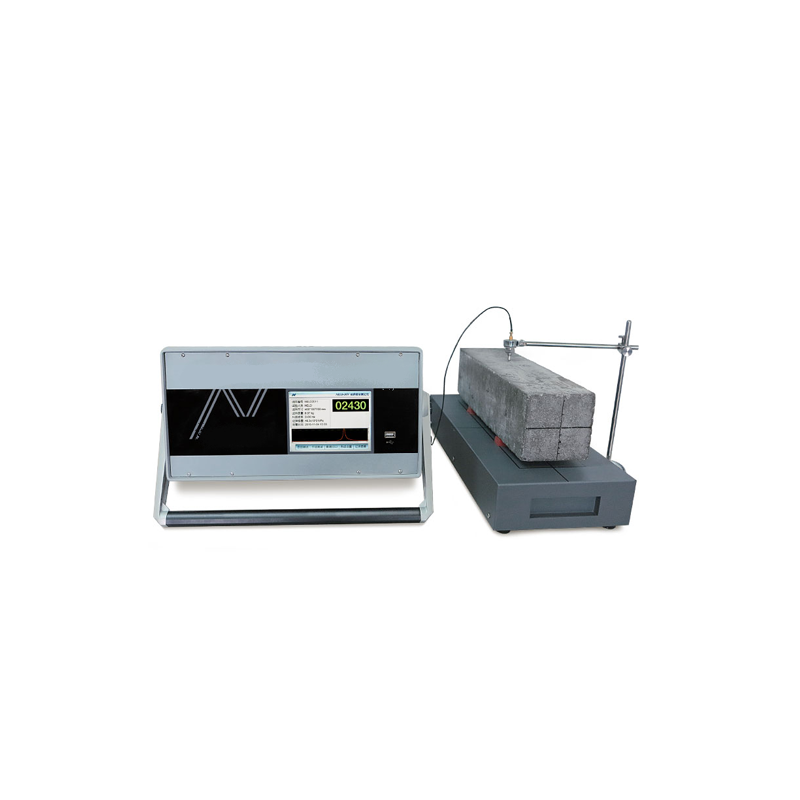

Concrete dynamic modulus tester

1. Frequency measurement: 100-20000Hz
2. Sensor type: piezoelectric
3. Measurement error: the same point repeated three times the measurement error ≤ 1Hz
4. Operation interface: 5.7-inch color touch screen
5. Measurement frequency error: <0.1%.
6. Data printing: micro printer printing
7. Test body measurement: horizontal, vertical
8. Data processing: direct calculation of the dynamic modulus of elasticity
9. Input voltage: AC220V ± 10%, 50Hz
10. External dimensions: host 400 × 400 × 210 (mm); shaker 490 × 200 × 280 (mm)
11. Equipment weight: host 8kg, shaker 5kg
