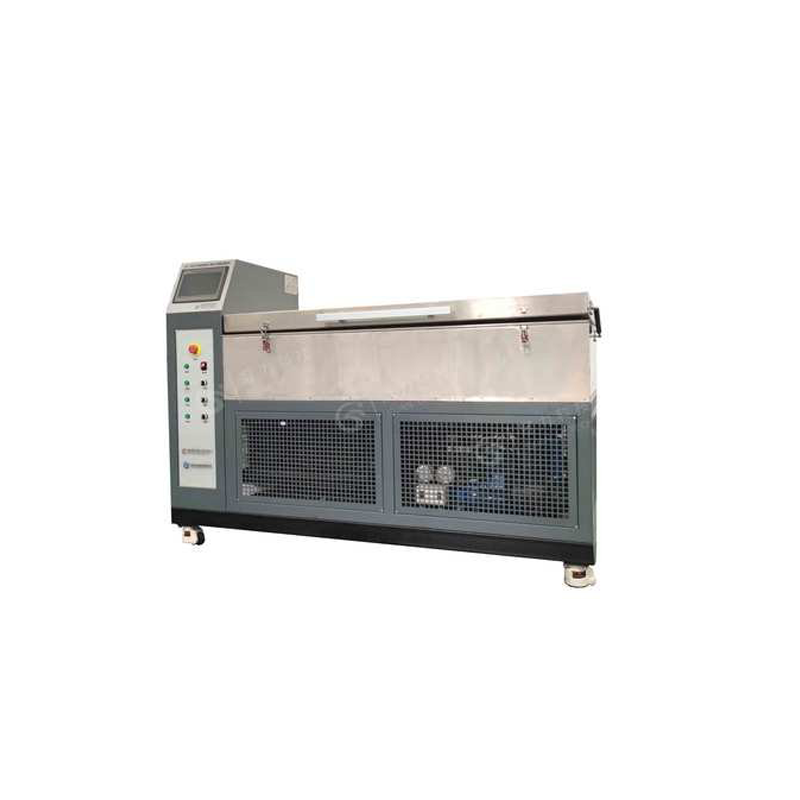

Concrete Freeze Thaw Cycle Chamber Test Machine

Concrete Freeze Thaw Cycle Chamber Test Machine is used to measure the frost resistance of concrete specimens under the condition of water freezing and thawing, and express the frost resistance of concrete by the number of rapid freezing and thawing cycles

1. Quantity of the specimens: 16PCS
2. Size of the specimen: 100×100×400,
3. Size of the specimen bucket: 120×120×500mm,
4. The temperature measuring specimen is in the same size and there’s a temperature measuring hole in the center.
5. Sensor 1: centrol temperature control: 5 – -18±2℃;
6. Sensor 2: Liquid temperature control: 18-23℃;
7. Sensor 3: Diagonal line temperature control: – -18℃;
8. Sensor 4: Secondary protection temperature control: 50-30℃;
9. Freezing and thawing cycle period: 2-4h, Thawing time is no less than 1/4 of the freezing and thawing cycle
10. The transmitter substance for freezing and thawing cycle: – 45℃( Anti-freeze fluid)
11. Refrigeration compressor: 5HP
12. Heating power: 4KW
13. Concrete Freezing and Thawing Cycle Testing Machine Test Chamber
