Concretereinforcementscanner

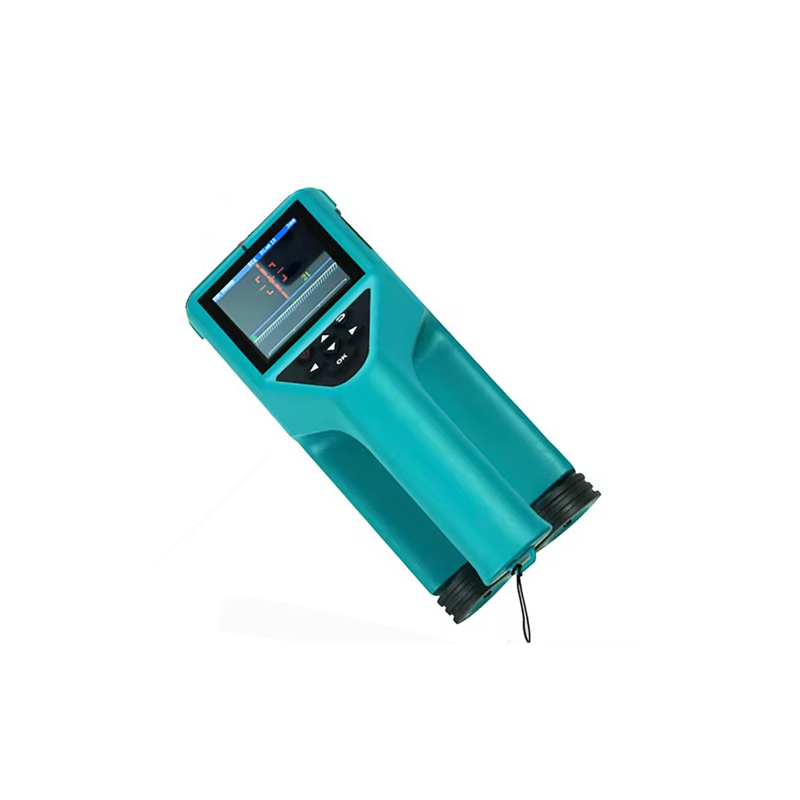

The integrated rebar detector is a portable non-destructive testing instrument, which can be used to test the construction quality of reinforced concrete structures. It can measure the position of rebars on the concrete surface, detect the thickness of the steel protective layer and the diameter of the rebar. Compact size, light weight, easy to carry, wireless cloud transmission function, laser，precise positioning of steel bar position;Thickness detection mode is intuitive, showing thickness and steel spacing at the same time. Waveform scanning mode shows the distribution of reinforcing bars intuitively, and it is more intuitive to detect and analyze dense reinforcing bars. The waveform scanning mode also shows the thickness and spacing of the rebar protective layer. It can detect the middle position of the two reinforcing bars, The instrument automatically stores the calibration value, realizes fast measurement and avoids the trouble of each calibration.

1.Rebar diametersetting range(mm):∅6mm ~ ∅50mm          2.Host parameter screen size:2.8inch

3.Small range 1-80mm Resolution:240×320                        4.Large range 1-180mm volume:220×93×110mm
5.weight:0.6kg
