Consolidation Apparatus One Dimensional Consolidation of Soil Oedometer Test

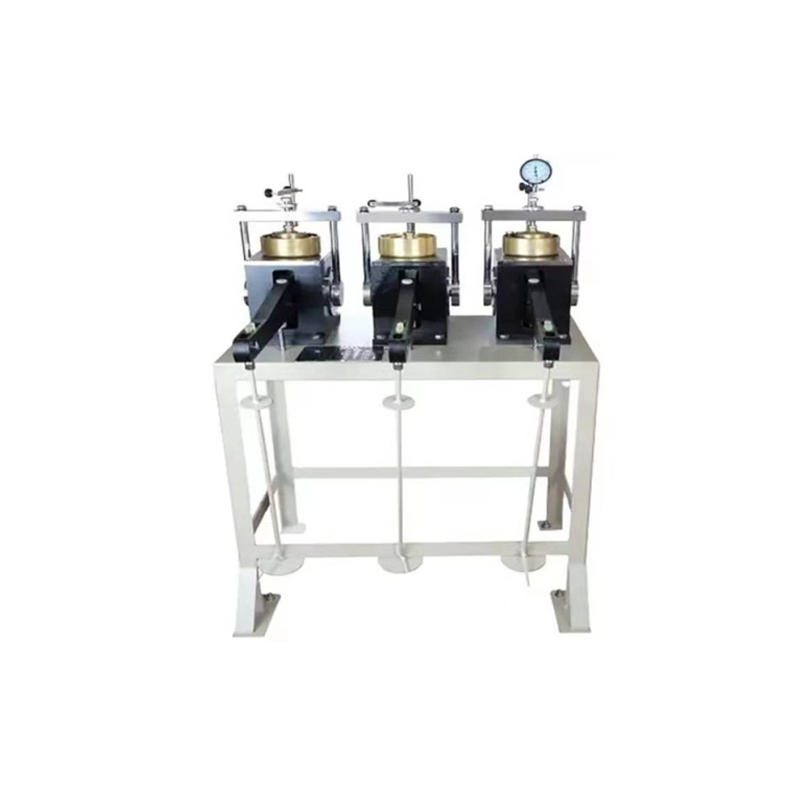

Laboratory Triple Soil Consolidation Test Apparatus Designed to provide reliable results from a unit which is compact without sacrificing accuracy and repeatability. It comes with triple beam ratio and compact design ensures space saving.

It is used in soil compression test to detect the relationship between soil pressure and deformation, calculate the unit deposition, compression index, resilience index and consolidation coefficient of soil, etc.

Apparatus
1). Specimen area: 30cm2, 50cm2
2). Specimen number: 3
3). Pressure range: 12.5-1600KPa, 12.5-3200KPa
4). Load grade: 12.5, 25, 50, 100, 200, 300, 400,800, 1600, 3200

Triplex Low -pressure Consolidation

Testing Apparatus
1). Specimen area: 30cm2, 50cm2
2). Specimen number: 3
3). Pressure range: 12.5-800KPa 12.5-400KPa
4). Load grade: 12.5, 25, 50, 100, 200, 300, 400, 800
