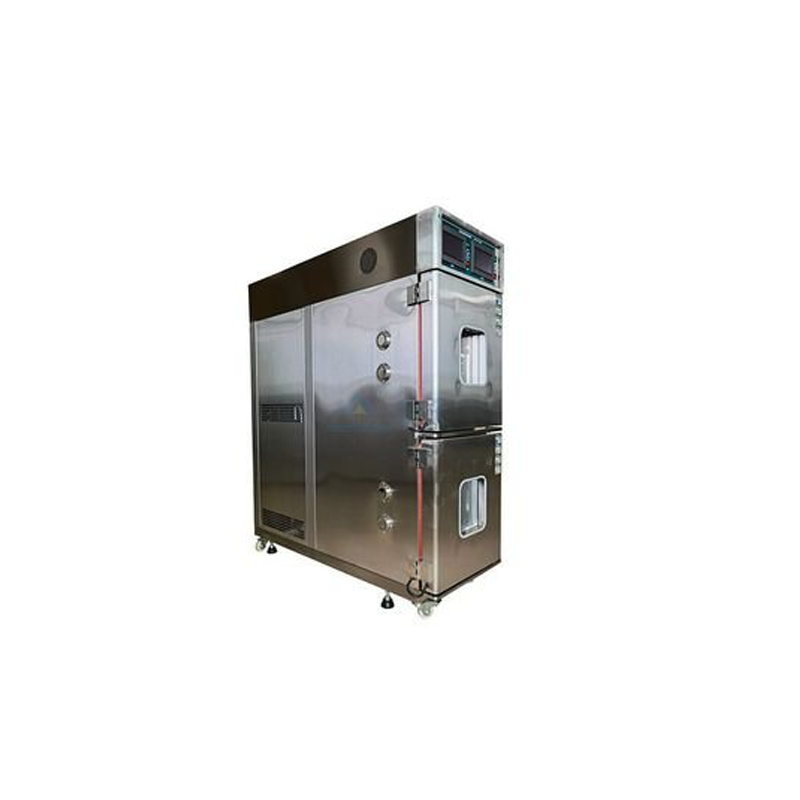

Constant Temperature And Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber

PerformanceTemp.& Humi. Adjust WayBalanced temperature and humidity control (BTHC) PID intelligent adjustmentTemperature range-20℃,-40℃,-70℃~150℃Temperature accuracy0.01℃Temperature tolerance±1.0℃Temperature fluctuations≤±0.5℃ (without load and temperature stable)Temperature uniformity≤1.5℃    (without loading), 50mm≤SENSOR Humidity range 20%-98%RH Humidity accuracy 0.1%RH Humidity tolerance

≥75%RH:≤±3%RH

≤75%RH :≤±6%RH

Humidity fluctuations ≤±2.5%RH Heating rate 3℃/min in average Cooling rate 1℃/min in averageRegulatorCooling MethodSingle stage compression, two stage compressionRefrigerator

Hermertically Sealed France Tecumseh Compressor or

Semi-hermetic BOcK Compressor

Condensation MethodAir-cooledControllerOperation PanelProgrammable LCD Touch ScreenRunning ModeFix Running, Pattern RunningProgram Memory Capacity120 Group Programmable, Max 100 Section EachOutputRs-232 (USB,Optional)
Water supWater SupplyCirculating WaterWater Tank CapacityChamber Internal Capacity < 800L: 25L * 1pc
Chamber Internal Capacity > 800L: 25L* 2pc
