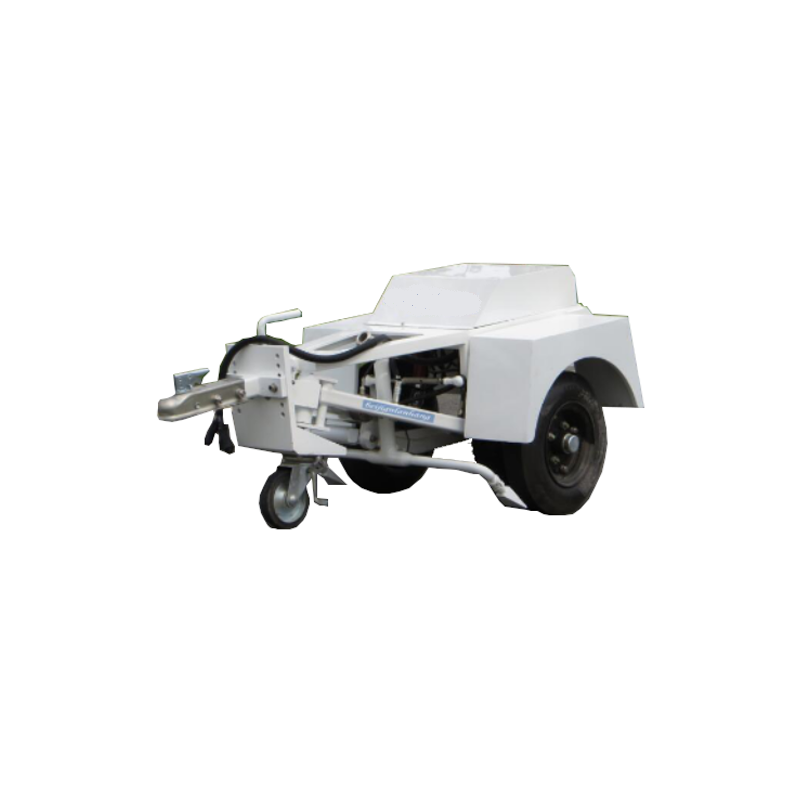

Continuous Coefficient of Friction Tester for Transverse Force

1、 Trailer size Length: 1583mm Width: 990mm Height: 670mm
2、Trailer connector height: 350 ±12 mm
3、 trailer operating weight including mass block but not including support wheel : 254kg
4、Weight distribution :
Left wheel – at calibrated height position 77.5 ± 1kg
Right wheel – at the calibration height position 77.5 ± 1kg
5、Testing Accuracy ±0.5%
6、Test wheel adjustment:
Double-wheel adjustment: 7.5° for each left and right wheel.
Single wheel adjustment: 15° for the right wheel
7、Rear wheel 53.5 kg
8、Tire pressure Friction coefficient test wheel 0.7 ± 0.035 kg/cm2
9、Distance test wheel: 2.1 ± 0.137 kg/cm2
10、Distance measurement accuracy ±0.05% plus tire wear
11、 traction speed Test speed range: 0 ~ 120km / h
12、International standard airport runway test speed 65km/h and 96km/h
13、China’s standard road test test speed 50km / h
14、Operating voltage 12-36V DC (12V and 24V vehicle power supply common)
