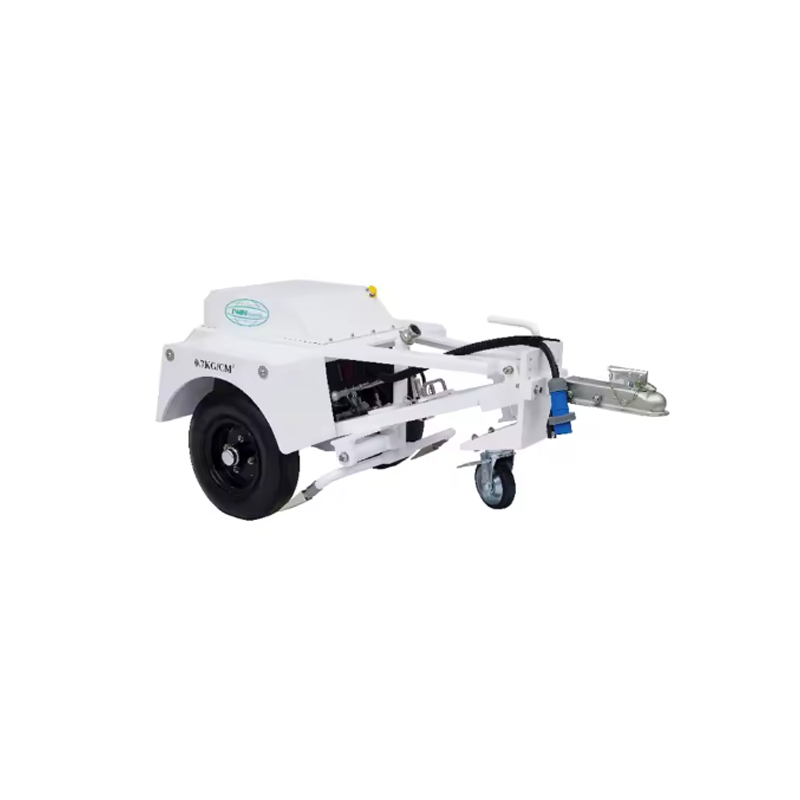

Continuous Friction Measurement Equipment (CFME) Coefficient of Friction Tester

[rank_math_breadcrumb]

serial number	device or configuration name	Specifications
1	trailer size	Length: 1553mm Width: 960mm Height: 570mm
2	trailer coupler height	350±12mm
3	Trailer Operating Weight	including mass but excluding support wheels 254kg
4	weight distribution	Left wheel – at the calibrated height position 77.5 ± 1kg
5	weight distribution	Right Wheel – 77.5 ± 1kg at calibrated height
6	test wheel adjustment	Two-wheel adjustment: each adjustment 7.5° left and right
7	rear wheel	53.5 kg
8	Special test wheel for coefficient of friction	ASTM 1551E
9	distance test wheel	standard tire
10	tire pressure	Friction coefficient test wheel 0.7 ± 0.035 kg/cm2 distance test wheel 2.1 ± 0.137kg/cm2
11	traction speed	Test speed range: 0~100km/h
12	International standard airport runway test speed	65km/h and 96km/h
13	China standard pavement inspection test speed	50km/h
14	Operating Voltage	DC12V
15	electronic components	Processor Ethernet interface, connect to laptop
16	Relative error of friction force indication	±2%
17	Distance measurement accuracy	±0.1% plus tire wear
18	temperature measurement	road surface temperature sensor infrared sensor
19	Temperature Test Accuracy	±1%
20	Sprinkler system (optional)	sprinkler control automatic and manual
21	processing software	Test report can be printed out directly
