Corrosion Rust In Concrete R800 Integrated Detecting Rebar Scanner Detector

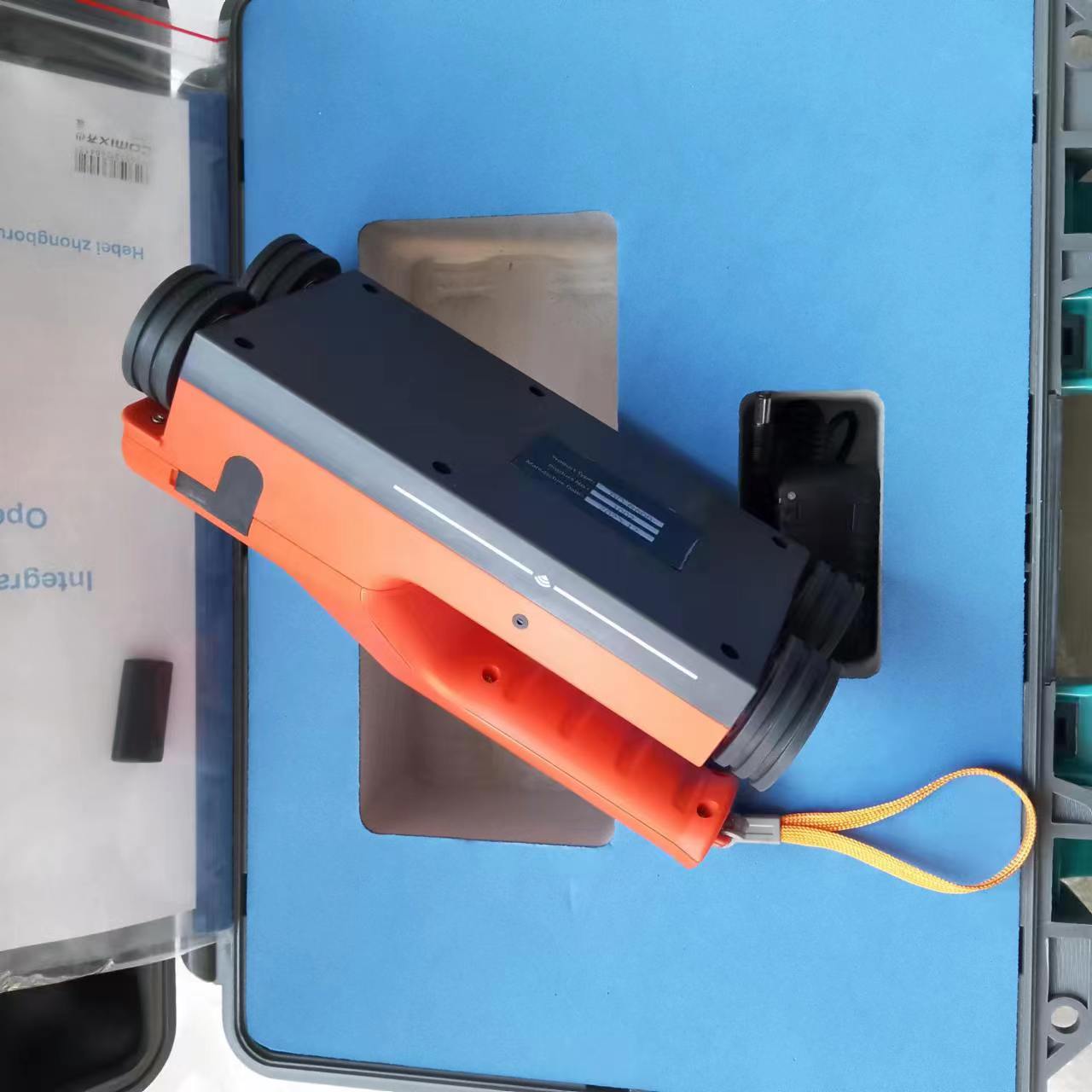

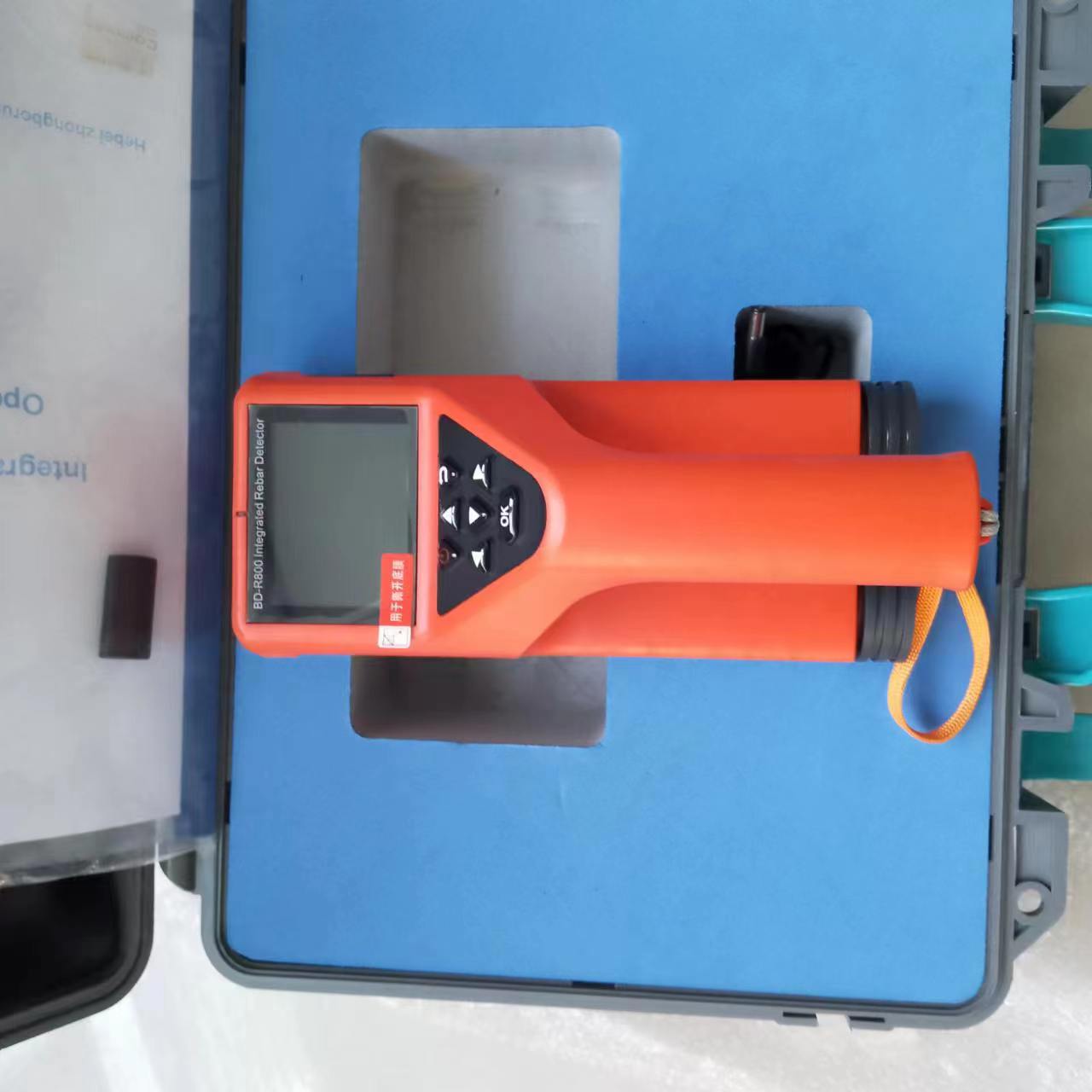

3D R800 Laser Assisted Steel Bar scanner is a hand-held nondestructive testing equipment developed by our company. It can be used conveniently and can be used to test the internal reinforcement of concrete. It can accurately test the thickness of the concrete inner steel bar, the position, direction and distribution of the internal steel bar, and can test the diameter of the steel bar. Instrument development and production is according to the JGJ_T152-2008 concrete steel bar testing technical specification.In addition to testing the steel bar, the instrument can also be used to position the midpoint of two reinforcing bars, and also to test the magnetic and electric conductors in non-magnetic and non-conductive media.The instrument can automatically store the testing data (thickness and spacing information) in thickness testing, section testing and grid testing, so as to ensure that the testing data can be effectively saved, and can view / play back the testing data records while viewing. The built-in storage data space of the instrument can save more than 170,000 testing points; in the transfer, data can be transmitted by wireless Bluetooth or USB port; if you need to configure Bluetooth field printing, please contact our company. Battery fully charged, can be used for 30 hours, to meet the needs of daily large workload testing.
