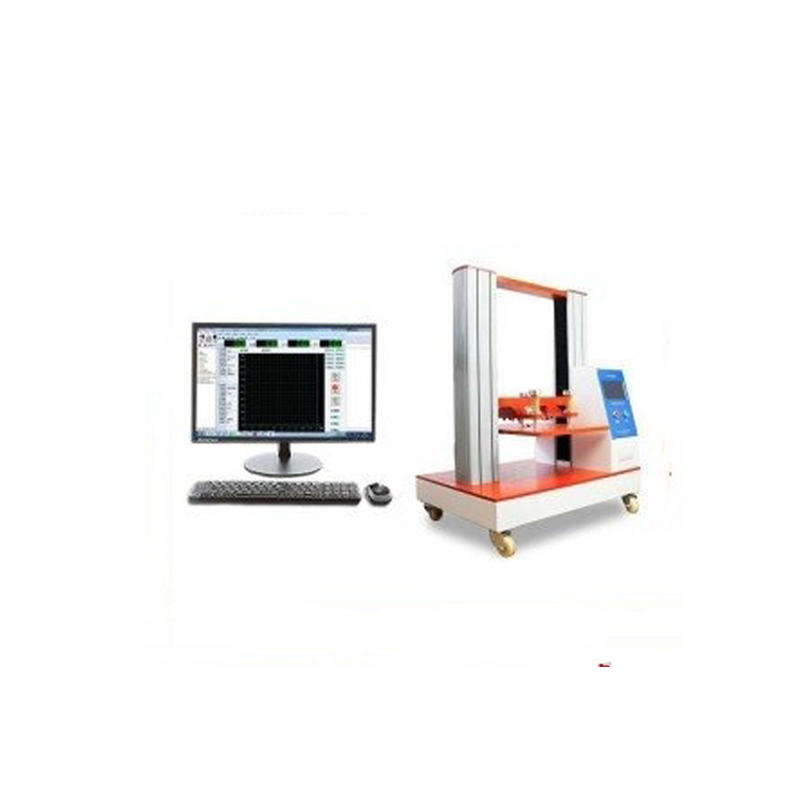

Corrugated Box or Paper Edge Crush Tester
Corrugated Box or Paper Edge Crush Tester
Edge Crush & Ring Crush Tester machine can be used with a variety of paper packaging materials to perform a variety of paper quality tests, such as ring compression (RCT), flat compression (FCT), edge compression (ECT), and bonding (PAT) Multiple tests are test equipment that combines multiple functions in one.
Principle of Operation:
The rectangular cardboard sample is placed between the upper and lower pressure plates of the tester, and the corrugated direction of the sample is perpendicular to the two pressure plates of the tester, and then pressure is applied to the sample until the sample is crushed, and the test sample can bear Ultimate pressure.
|
Control mode |
Touch screen with test curve |
|
Load Resolution |
1/100,000 |
|
Compression Plates |
Up plate: 100mm*140 mm (Rectangle) Down plate: 100mm*200mm (Rectangle) |
|
Ring crush sample |
152mm×12.7mm |
|
Unit |
Kgf, Ibf, N |
|
Load accuracy |
Within 0.2% |
|
Result Output |
Excel or doc or PDF report |
|
Connection |
RS 232 |
|
Test speed |
(10±3)mm/min |
|
Statistics |
Mean value, max. & min values of the series |
|
Power |
1PH, 220V, 60HZ, 2A (customer specific) |
|
Dimension of machine |
480mm×460mm×550mm |
|
Options |
ECT sample cutter & holder RCT sample cutter & holder PAT sample cutter & holder FCT sample cutter & holder Force Calibration indicator |
