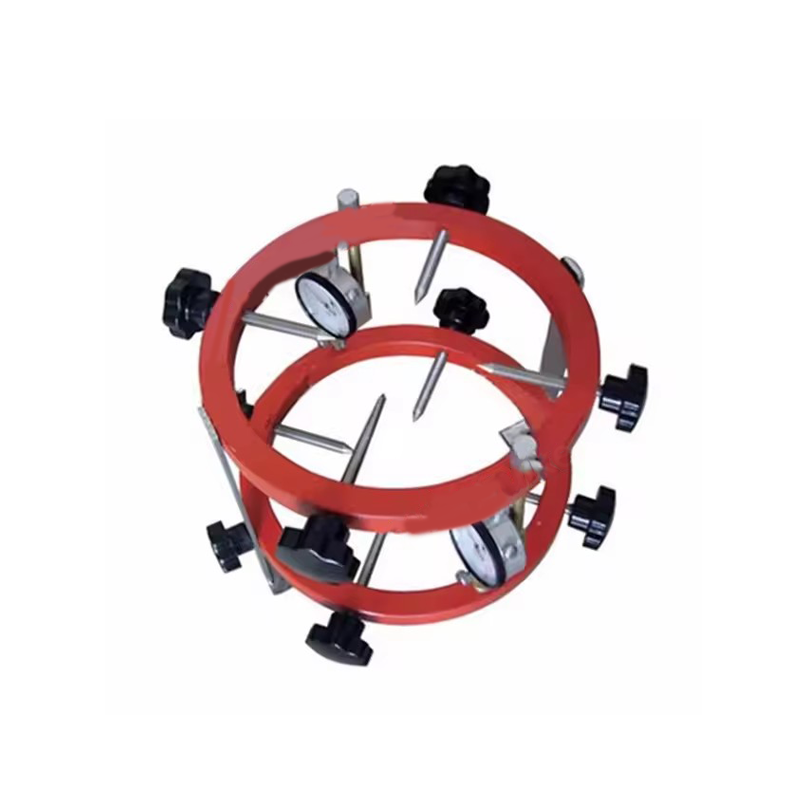

cylinder extensometer for elastic modulus of concrete cylinder specimen

* Used for determining the axial deformation and diametrical extension of concrete cylinder specimens during the compression test.
Complete with 2×0.001 mm dial gauge and wooden box.

* It is used for determining the axial deformation and diametrical extension of concrete cylinder specimens during the compression test.
* Complete with 2×0.001 mm dial gauge and wooden box.It is used to determine the strain and deformation characteristics of concrete and cylindrical specimens.
* It is comprises two lightweight metal castings for clamping to the specimens, two length gauge bars, a dial gauge 5 mm travel x 0.001 mm divisions. Compressometer for cylinder dia. 150 x 300, 160 x 320 mm. and 6” x 12”.

1.Model：TM-2

2.Dial gauge：0–1mm/0.001mm

3.Distance from upper ring center to bottom ring center：150mm

4.Specimen size suitable：150×150×300mm,    100×100×300mm
