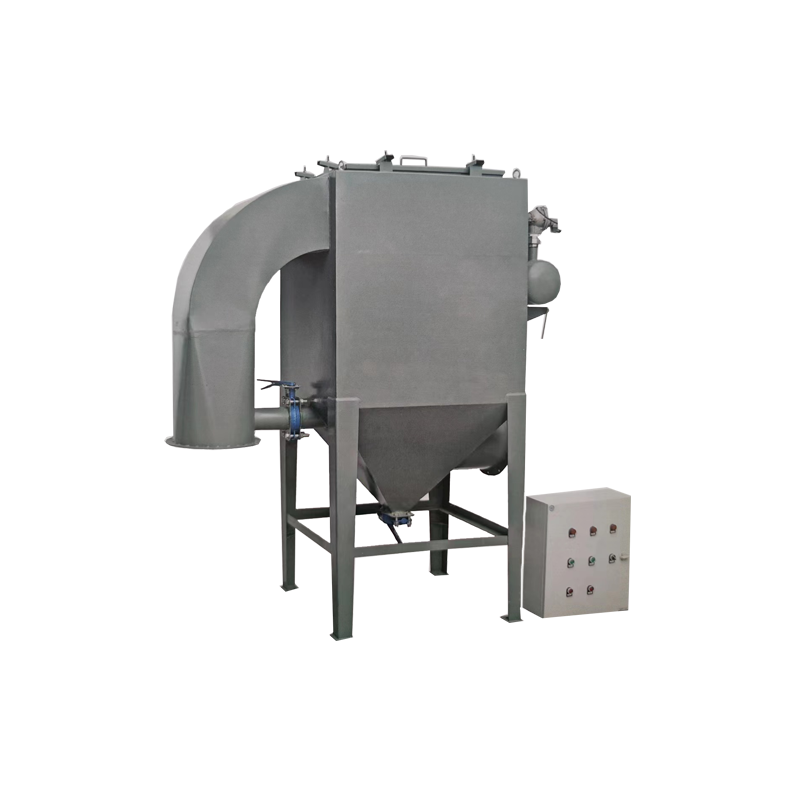

Dedusting equipment for monolithic combustion test of building materials

1、Pumping volume：2400m³/h

2、Pressure: 3000 Pa

3、Filtering medium: non-woven fabric

4、Temperature：110℃

5、Quantity of filter cartridges: 9

6、Filtering area: 45 square meters

7、Cartridge specification：φ200mm×660mm

8、Inlet dust concentration: ≤100 g/m³ (standard state)

9、Dust concentration at the outlet: ≤30m g/m³ (standard state)

10、Cleaning method: pulse compressed air

11、Compressed air consumption: 0.37 m³/min

12、Power voltage: AC 380V three-phase five-wire system
