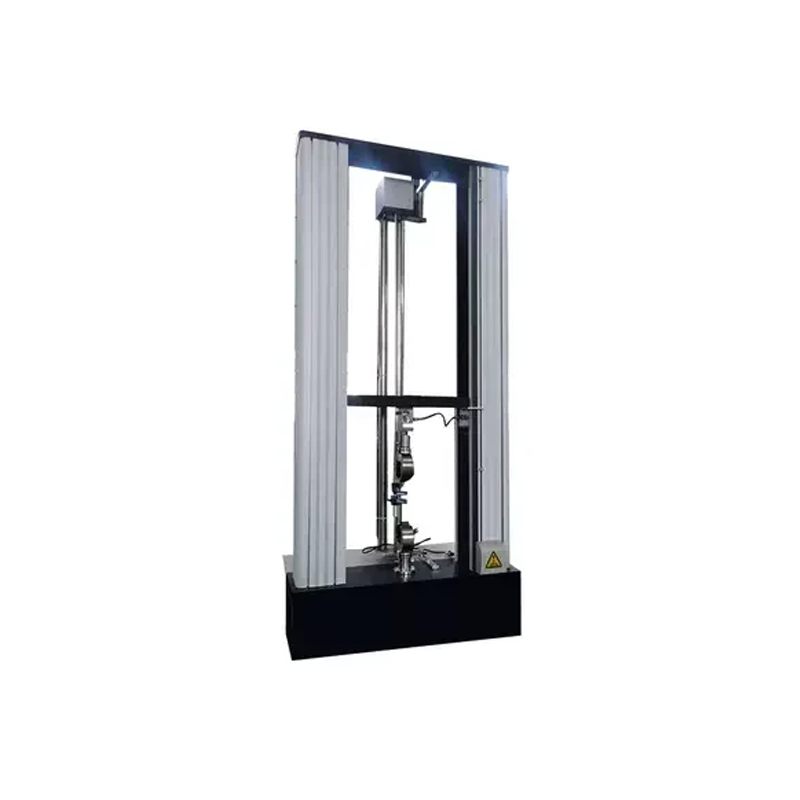

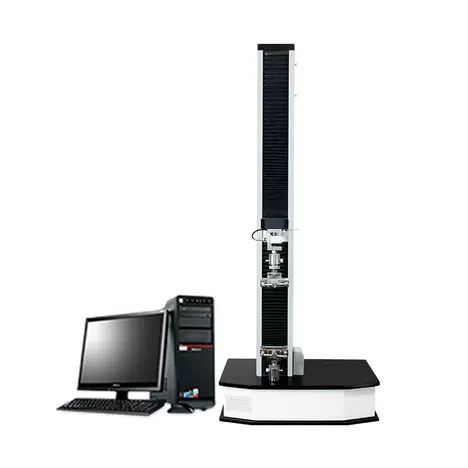

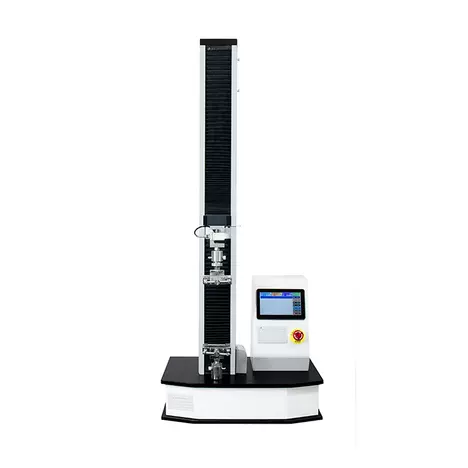

Digital display universal rubber tensile testing machine

The machine can be equipped with a wide range of attachments including: clamps, clamps, compression frames covering all relevant applications such as rubber, plastic, foil, film, textile, adhesive, paper, food, foam, wood, wire or other metal or Testing of non-metallic samples as well as medical, electronic and other components.The load frame is of rigid construction, providing excellent axial and lateral stiffness.

Structural columns and 2 ball screws max.Load (kN) 10 20 30 50 100 Stretch space (mm) 670 Chapter 770 650 Compression space (mm) 900 1000 1000 Host weight (kG) 370 Chapter 420 680 Power supply 220V/50-60Hz Speed ​​(mm/min) ) 0.01-1000 0.01-500 Displacement resolution 0.4 pm 0.2 pm Load accuracy Level 1 Measuring range 4% ~ 100% Position limit switch upper and lower lights Power supply lamp, leakage protection device Automatic protection overload 10%, automatic protection
