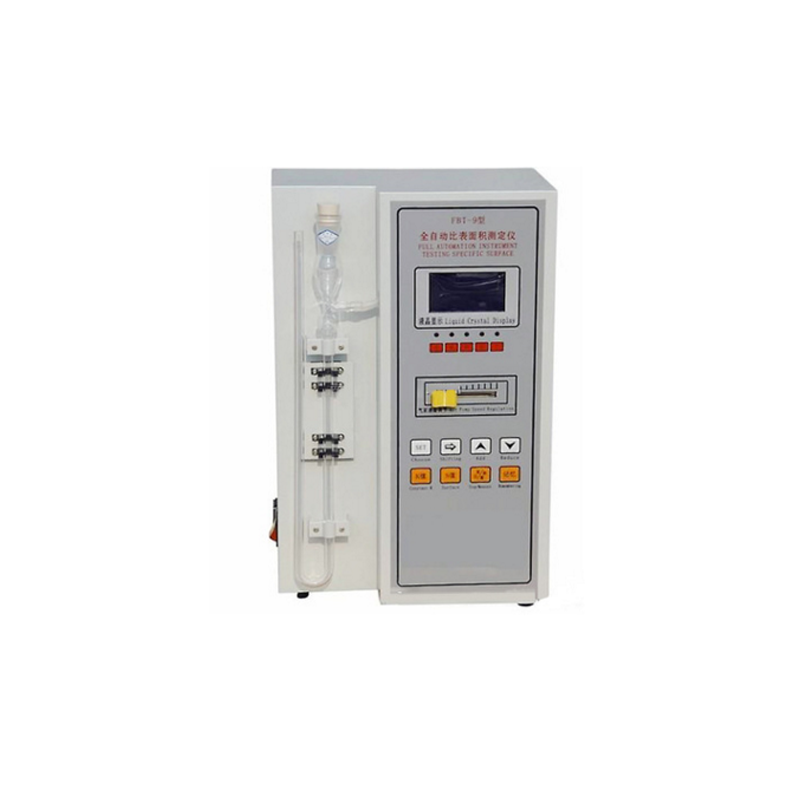

Digital Electric Blaine Fineness Apparatus Blaine Apparatus for sale
The automatic specific surface area tester is developed in accordance with the latest national standards of JC/T956-2014.This product design is the first in the same industry in the country. The installation of U-shaped glass tubes does not require tape to wrap the glass tube to adjust the clamp and the photoelectric tube. If the distance is over, the glass tube can be installed directly, saving a lot of time for installation, debugging and testing. The barrel, tamping rod and perforated plate are all stainless steel, and the barrel is calibrated with data before leaving the factory. No test is required The barrel is calibrated with mercury before, and the test can be done by opening the package and directly loading the glass tube.
Technology Parameters
1. Using highly reliable single-chip microcomputers and integrated circuits, it can automatically adapt to different temperatures
and automatically detect the working status of the instrument to ensure accurate and reliable measurement results.2. Automatic
detection of water level, automatic timing, automatic temperature measurement, automatic calculation and display results.
3. Except for manual loading, the entire test process is automatically completed to avoid human error.
4. Press the measurement key once to get a measurement result, the operation is very simple.
5. Inner cavity diameter of ventilating cylinder: φ12.7mm
6.The height of the sample in the ventilating cylinder: 15mm 15. Number of holes in perforated plate: 35
7.Aperture of perforated plate: φ1.0mm
8.Thickness of perforated board: 1mm
9. The volume of the barrel has been calibrated with mercury
10. It is convenient and quick to install the U-shaped pressure gauge with the plastic pinch piece
11. This machine is simpler and more convenient to operate than similar products in the test
Specification
|
voltage
|
220V±10%
|
|||
|
Timing range
|
0.1 second -9999.9 seconds
|
|||
|
Timing accuracy
|
<0.2 seconds
|
|||
|
Measurement accuracy
|
≤1‰
|
|||
|
Temperature range
|
8-34℃
|
|||
|
Specific surface area value S
|
0.1-9999.9cm2/g
|
|||
