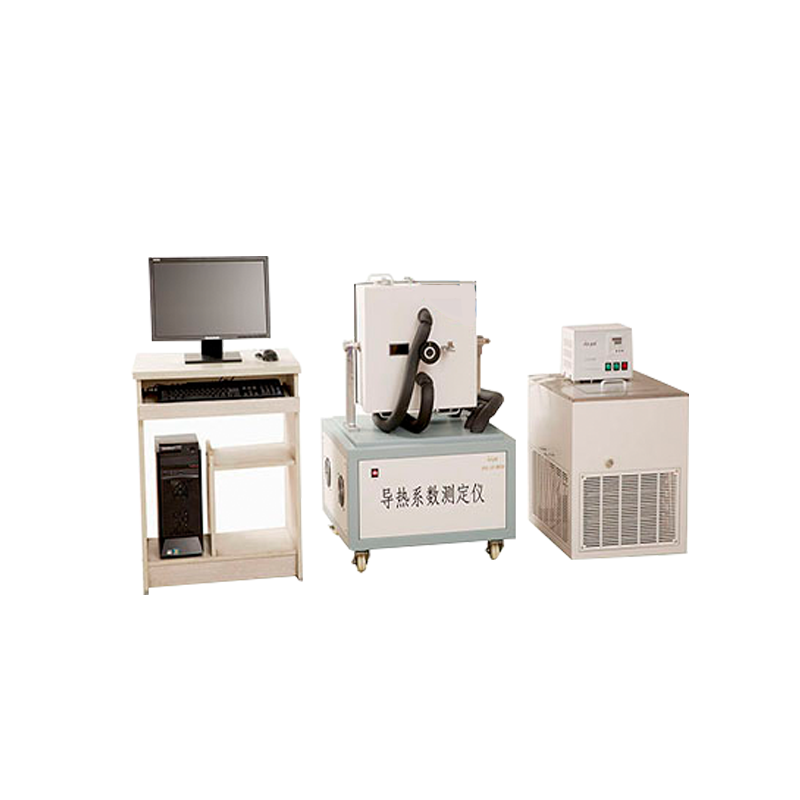

Double Plate Thermal Conductivity Tester

1、Standard size of specimen: 300mm×300mm×H(5～40) mm;

2、Test piece flatness: 0.1mm;

3, thermal conductivity measurement display range: (0.001 ~ 2.000) W / (m-K);

4, thermal conductivity measurement accuracy: ± 3%;

5, thermal conductivity measurement repeatability: ± 1%;

6, temperature resolution: 0.01 ℃;

7, temperature control accuracy: 0.05 ℃;

8, power supply voltage: AC 220V ± 10%, 2.5KW;

9, specimen thickness: standard 25mm, range (5 _~ 40) mm;

Specimen thermal resistance requirements: the thermal resistance of the specimen should not be less than 0.1 ( ^m2-K ) / W, and the thickness of the standard thickness requirements; if the specimen thermal resistance of the next

Requirements; if the lower limit of the specimen thermal resistance is as low as 0.02 ( ^m2-K )/ W, but the accuracy may not meet the requirements.

10, clamping force: not more than 2.5kPa.
