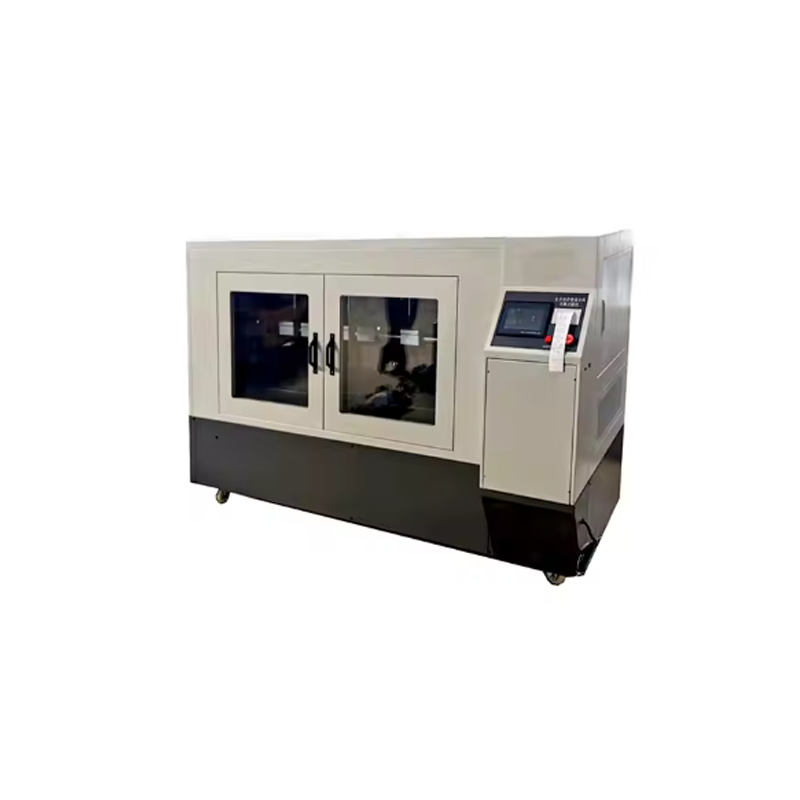

double wheel tracker Wheel Rutting Tester

Sample Size: 300mm*300mm*30-100mm(300*400*30-100mm can be customized)

Test wheel moving distance: 230mm±10mm

Displacement Measure range: 0 ~ 50 mm.

Displacement measurement accuracy: 0.01mm

Resolution of displacement measurement: 0.005 mm

Temperature control range: room temperature ~ 80 ℃.

Temperature Resolution:0.1℃

Accuracy of temperature measurement: Initial accuracy (±0.5℃) after fixed point correction.

Temperature Control Accuracy (Relative to Temperature Measurement Points)

Temperature of the box: 45 minutes later, ±0.5℃, 60 minutes later, ±0.3℃

Flume temperature: 30 minutes later, ±0.5℃, 60 minutes later, ±0.3℃

Temperature difference in different positions of the box: 60 minutes later, the maximum temperature difference is 0.5℃

Round-trip speed of wheel milling: 21 roundtrips/min

Surface Hardness of Wheel Mill: 78 + 2 (60℃)

Wheel rolling load: 0.7MPa + 0.05MPa (factory adjustment)

Additional Load: 0.7 MPa (Heavy Load Test)

Power:3.5KW 380V50Hz
