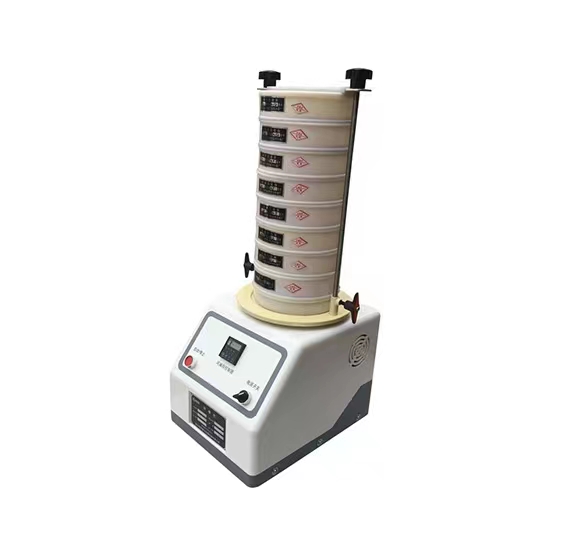

Electromagnetic analytical rotary sieve shaker

WIDE APPLICATION]Widely used in food, medicine,chemical, abrasives, pigments, mining, metallurgy, geology, ceramics, nationaldefense and other industries, scientific research units, laboratories, laboratories, production control, etc. For the inspection of solids, powders,slurry materials, etc. Screening, classification, particle size analysis,analysis of impurity content, etc.

PROFESSIIONAL VIBRATING SCREEN MACHINE]The standard vibrating screen machine uses a vibrating motor as the vibration source. The vibration motor vibrates to vibrate the base of the screen machine, and then conducts through the base to the standard test sieve placed on the base to sieve the materialparticles smaller than the mesh surface of the test sieve.

[8 LAYERS TEST SIEVES]The sieve machine can place up to eight layers of test sieves (includingbottom sieves), which can accurately separate one kind of pellets from 2 to 7 particle segments at the same time. High efficiency, exquisite designand durability, any powder and liquid can be sieved.

[MAIN PARAMETER]Available sieve diameter: 200mm / 7.87”; Screening particle size: 0.025mm-3mm (0.001-0.12”); motor power: 0.12kw; noise less than: 50 dB; amplitude: 0-3mm (0-0.118”); Vibration frequency: 1400 times / min; power supply: 220V 60HZ; Package Size:47cm x 39cm x 45cm; Package weight: 35kg.

[MAIN FEATURE]Small size, easy to move without space; It can be automatically shut down at regular intervals; Ensure experimental repeatability; The function is full and the operation is simpler; low noise and light weight; platform operation, no need to fix; Adjustable amplitude.
