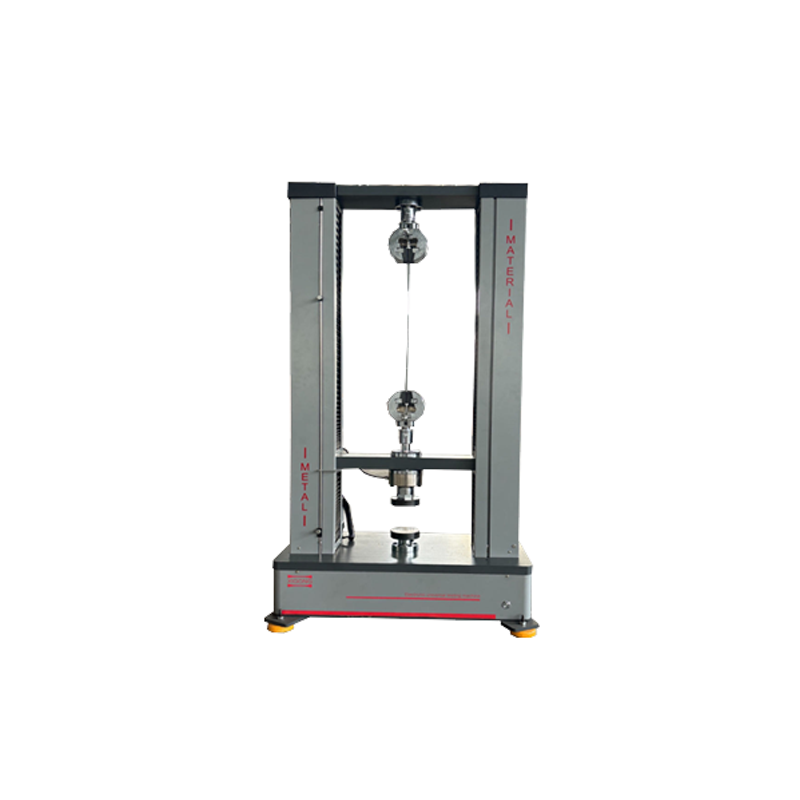

Electronic universal testing machine

Microcomputer control electronic universal testing machine, mainly used for new waterproofing roll-roofing material, waterproof coating, rubber materials, geotextile, insulation board, insulation mortar, pipe or other materials tensile, compression, bending, shear, peeling, bending, top breaking puncture and other tests, but also can be used for the tensile properties of small metal materials test. Force value extension at the same time counting, set the force value stop [fixed force extension], set the extension length stop [fixed stretch stress], the average value display and seven test speed and stepless speed regulation. Can be a one-time display of the maximum force value, material strength, tensile length and maximum elongation and print.

1.Specification Model: WDW-5000N
2.Maximum test force: 5000N
3.Effective measuring range of test force: 10N-5000N.
4. Minimum resolution of test force: 0.5N
5.Maximum distance between tensile fixtures: 800mm
6. Test speed: 1-500mm
7. Power supply: 220V
8.Motor power: 750W
9. Safety protection device: limit switch
