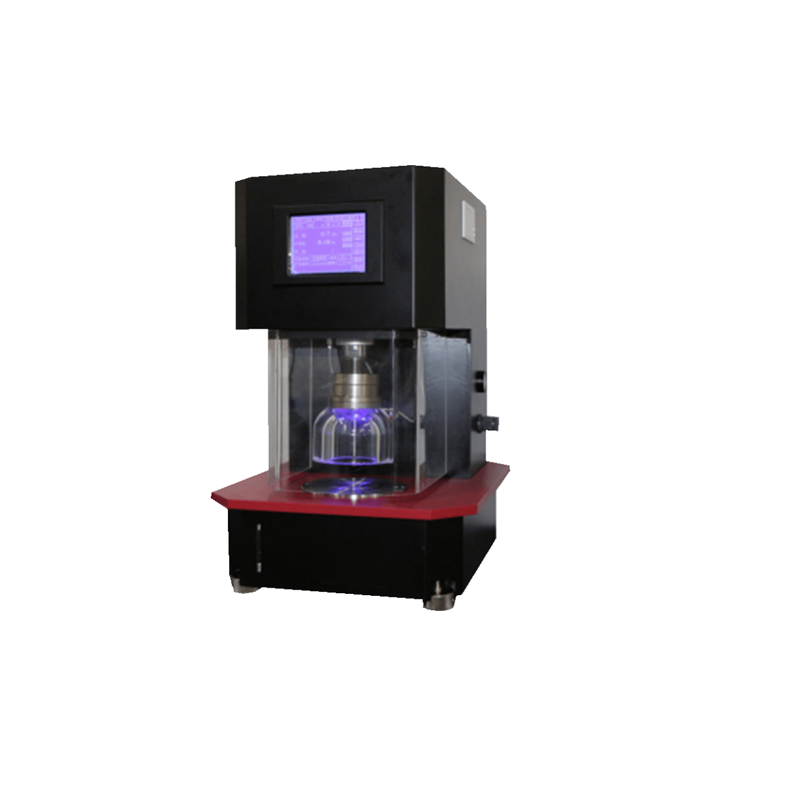

Fabric Strength Tests Textile Testing Equipment Automatic Hydraulic Bursting Testing Equipment
INTRODUCTION
To determine the bursting strength and distension at burst of woven and knitted fabrics as well as technical textiles,non-wovens,bonded fabrics,plastics,leather (artificial and natural) and cardboard.
| Pressure measurement range | 2.00Mpa,0.1Kpa |
| Distension measurement range | Up to 70 ± 0.02 mm |
| Measuring areas | 7.55cm² (Ø 31mm) and 50cm² (Ø 79.8mm) |
| Unit of measurement | kPa – kgf/cm² – mmHg – lb/in² – atm |
| Test methods | Constant Rate – Constant Pressure – Constant Distension –Timing |
| Hydraulic system rate of flow (adjustable) | 50-500mL/min |
| Hydraulic oil |
Glycerine 85%, distilled water 15% |
| Safety sensor | Over scale auto-stop |
| Diaphragm rubber thick | ≤ 2 mm |
| Data port | RS232 port for printer connection and 3 pin Mini-DIN connector for PC |
| Dimensions | 550 x 450 x 700 mm |
| Power supply | 220V,50Hz |
| Air requirements | 600-800kPa |
| Net Weight | 125kg |
