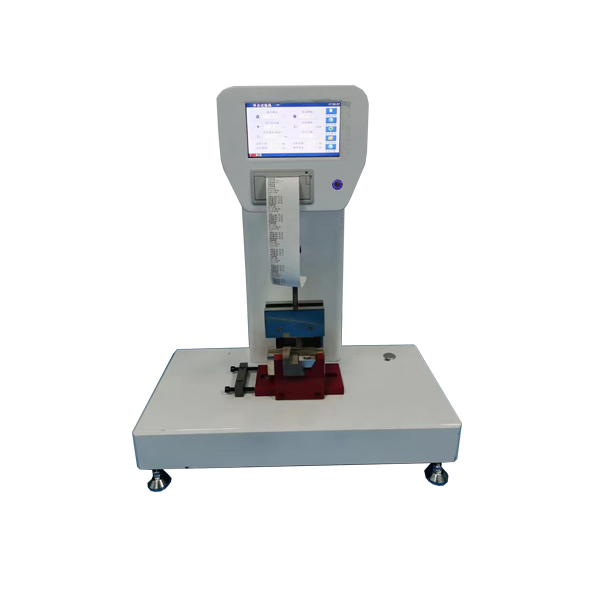

Factory price digital plastic drop hammer izod charpy impact testing machine
Factory price digital plastic drop hammer izod charpy impact testing machine
This ZBRK digital plastic izod charpy impact testing machine is mainly used in testing the nonmetal materials’ impact toughness, such as horniness plastic, strong nylon, glass reinforced plastics, china, clay rock, anti-electric etc . The main technical parameters conform to the requirements of ISO179, ISO180, GB/T1043, GB/T1843, GB/T13525, etc.
|
Model |
ZBRK-5.5 |
ZBRK-22 |
|
Impact speed |
3.5 m/s |
|
|
Pendulum energy |
1J or 2.75J or 5.5J |
11J or 22J |
|
Pendulum angle |
160° |
|
|
The radius of the rounded corner of the blade |
R=0.8±0.2mm |
|
|
distance from the edge of the blade to the jaw |
22±0.2mm |
|
|
Impact blade angle |
75°±l° |
|
|
Pendulum empty impact energy loss |
2.75J,5.5J:1% |
0.5% |
|
Distance from the pendulum center to the specimen center |
322 mm |
|
|
Power |
Single phase, AC220V, 50HZ |
|
