Factory Price Static Deformation Soil Load Bearing Capacity Testing Equipment
Factory Price Static Deformation Soil Load Bearing Capacity Testing Equipment

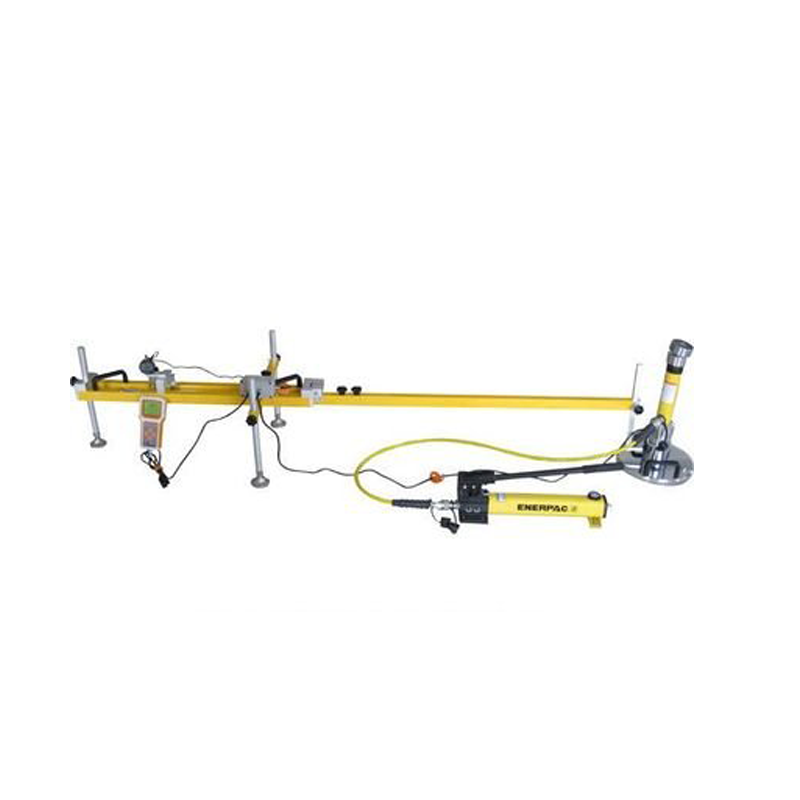

The gtj-k intelligent foundation coefficient tester is suitable for testing the foundation coefficients of coarse and fine grained soil and subgrade and base course after compaction, and can also be used for calculating the deformation modulus of uniform foundation. Test the stress and deformation characteristics of foundation soil, determine the foundation coefficient of railway, highway subgrade, road layer, etc., this product has the function of testing K30,K40, K60.
|
Test coverage |
Applicable soil type | All kinds of soil and earth-stone mixed packing with particle size less than 1/4 of bearing plate diameter |
| Test impact depth | 0~500mm | |
| work environment | temperature -10℃~40℃ humidity <90%HR | |
|
Armed with the host |
specification | Screen size :3 inches
volume:100×205×40mm weight:0.8kg |
| memory capacity | 400 sets of test data | |
| power supply mode | Large capacity lithium battery, working time more than 18 hours | |
| display usage | Chinese-english switching display | |
|
printer |
attended mode | Wireless bluetooth printing |
|
The sensor |
Pressure sensor range | 100kN |
| Displacement sensor range | 25mm,resolution ratio 0.01mm | |
|
data acquisition unit |
bearing plate | diameter:300mm
thickness:25mm weight:17.5kg |
| loading device | oil hydraulic pump:pressure100kN
High pressure hose:length2m Extension of pluggable pressure cylinder pole:1×40mm,1×90mm, 1×120mm,1×160mm,2×60mm |
|
| Sedimentation tester | Three-point support frame (with retractable, rotatable lever arm, adjustable base)
size: 2320×570×420mm(length * width * height) weight: 12.5kg |
|
|
packing specification |
mainframe box | Material: engineering plastics
volume:470×360×170mm weight:7.0kg |
| Outer packing case 1 | Material: aluminum alloy
volume:1410×510×260mm weight:72kg |
|
| Outer packing case 2 | Material: aluminum alloy
volume:1270×440×230mm weight:32kg |
