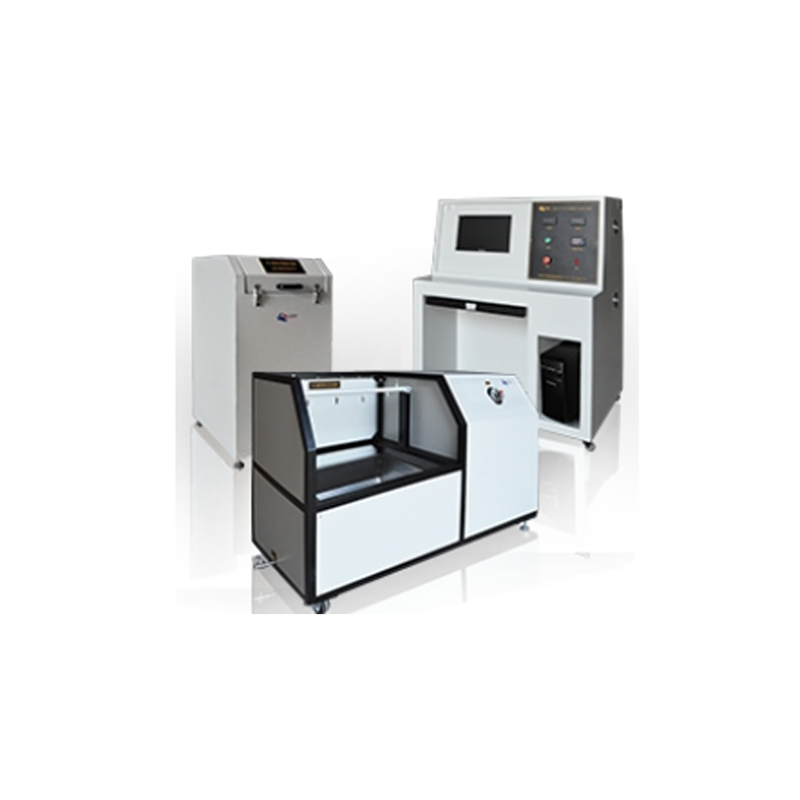

Fire Extinguisher Comprehensive Pressure Resistance Testing Machine

Application:It is suitable for the pressure alternation and bursting strength test of fire extinguisher cylinder. This equipment has the advantages of simple structure, easy to use and accurate and reliable, etc. It is widely used in fire extinguisher production factories, product quality inspection institutes, scientific research institutes and other units of various fire extinguishers for production inspection and development research.

Technical Parameters：

1.Equipment floor space:(LxWxH)5mx3.5mx2.95m
2.Equipment operating space:(LxWxH)6mx4.5mx2.95m
3. Pressure control range: 0-25Mpa (according to the actual demand to choose the appropriate pressure)
4.High pressure pump pressure:0-20Mpa
5.High-pressure water output:21L/min
6. Pressure measurement accuracy: 0.2%F.S..
7. Pressure stabilizing device: 31.5Mpa
8. Pressure collection interval: <100ms
9. Frequency range of frequency converter: 0-50HZ
10. Fire extinguisher pressure station: 2 interfaces
11 bursting test station: 1 interface
12. test medium: room temperature water (recycling, not less than 5 ℃)
13. The number of alternations: 5000 times
