Flexural And Stretch Equipment Tension Tester Universal
Flexural And Stretch Equipment Tension Tester Universal

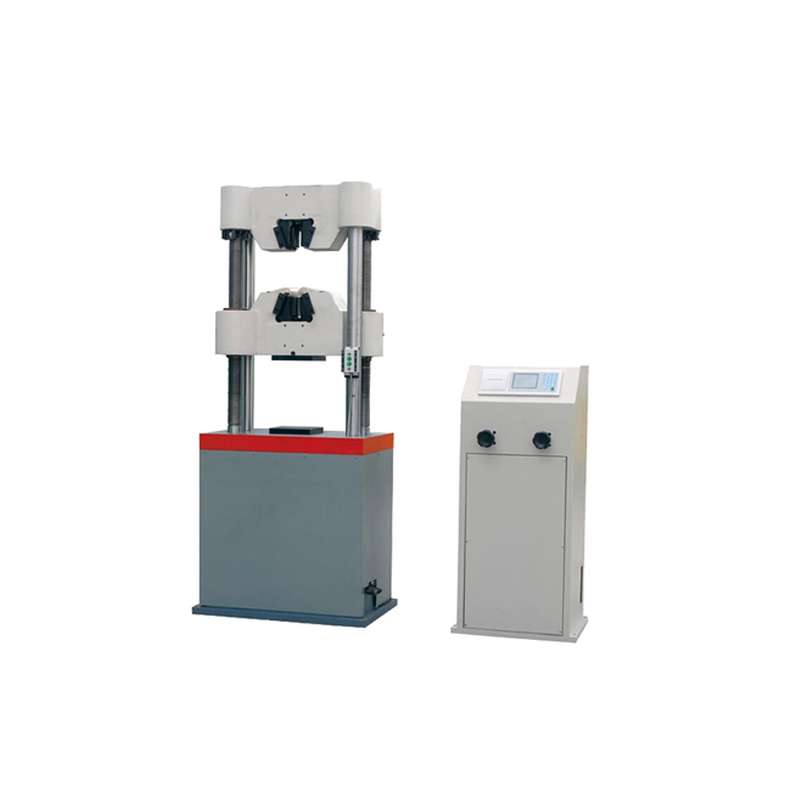

hydraulic universal material testing machine is mainly used to execute the tension, compression, bending, shearing etc. hydraulic universal material testing machine test benchest for metal materials. Attached simple accessories and devices, universal test machine can be used to achieve many kinds of mechanical performances.
The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression and bending space is between lower crosshead and working table. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space.
|
Max. Ram stroke:
|
250mm
|
|
Max. Tensile space:
|
800mm(including piston stroke)
|
|
Max. Compression space:
|
700mm(including piston stroke)
|
|
Display:
|
Computer control and display
|
|
Tensile grips for round specimen :
|
φ6-φ26mm
|
|
Tensile grips for flat specimen:
|
0-15mm
|
|
Distance for two columns:
|
500mm
|
|
Upper and lower platen size:
|
200x200mm
|
|
The span of bending:
|
450mm
|
|
Width of bending roller:
|
140mm
|
|
Dia. of bending roller:
|
30mm
|
|
Clamping mode:
|
Hydraulically
|
|
Transducer:
|
load cell
|
|
Deformation measuring:
|
YYU–10/50
|
|
Dimensions of load frame :
|
990×600×2435mm
|
|
Dimension of controller :
|
1140×700×930mm
|
|
All weight:
|
2800kg
|
